77. Crankshaft Balancer Installation

Important: Before installing the crankshaft balancer, check the oil seal contact area for grooving and roughness. Replace the crankshaft balancer if necessary.





1. Tap the crankshaft balancer into place with a mallet.
2. Make sure that the key is in place.
3. Make sure that the crankshaft balancer is completely installed on the crankshaft.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the bolt and the washer.
^ Tighten the bolt to 270 Nm (200 ft. lbs.).

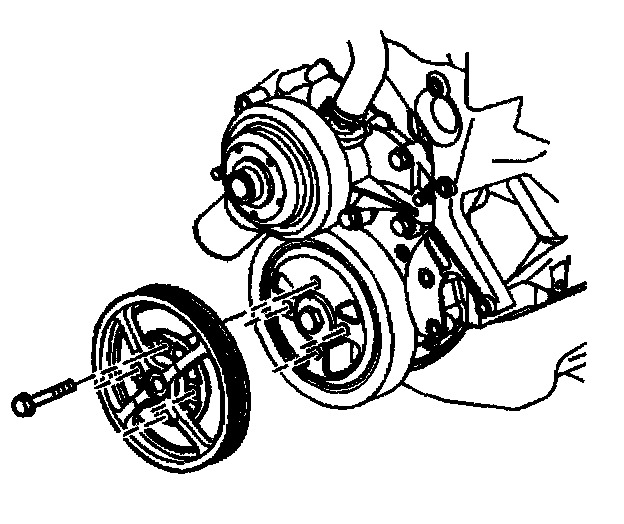

5. Install the crankshaft pulley and bolts.
^ Tighten the crankshaft pulley bolts to 50 Nm (37 ft. lbs.).
