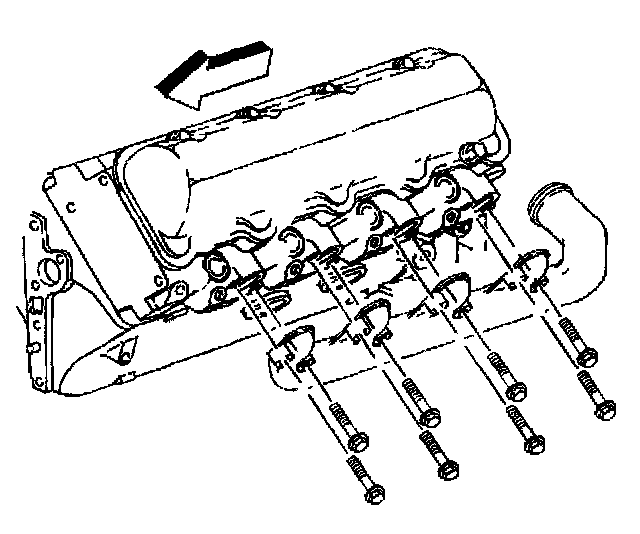

80. Exhaust Manifold Installation

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the left exhaust manifold and the bolts.
^ Tighten the bolts to 35 Nm (26 ft. lbs.).





2. Install the right exhaust manifold and the bolts.
^ Tighten the bolts to 35 Nm (26 ft. lbs.).


Oil Pump Drive Installation





1. Install the new gasket to the oil pump drive.
2. Install the oil pump drive to the engine.
^ Index the drive with the camshaft gear and the oil pump drive shaft.
^ Make sure the drive seats fully.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the clamp and the bolt.
^ Tighten the bolt to 42 Nm (31 ft. lbs.).
