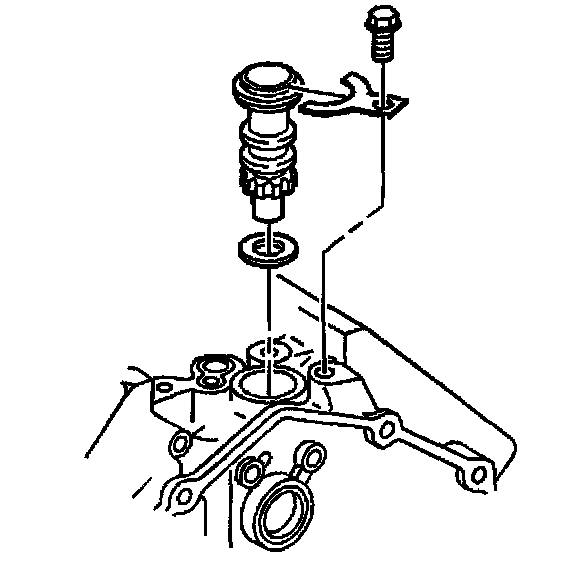

9. Oil Pump Drive Removal
9. Oil Pump Drive Removal
1.
Remove the oil pump drive clamp retaining bolt.
2.
Remove the oil pump drive clamp.
3.
Remove the oil pump drive.
4.
Remove the gasket.
