Vehicle Speed Sensor, IAC, and Cruise Control
Vehicle Speed Sensor, IAC, and Cruise Control

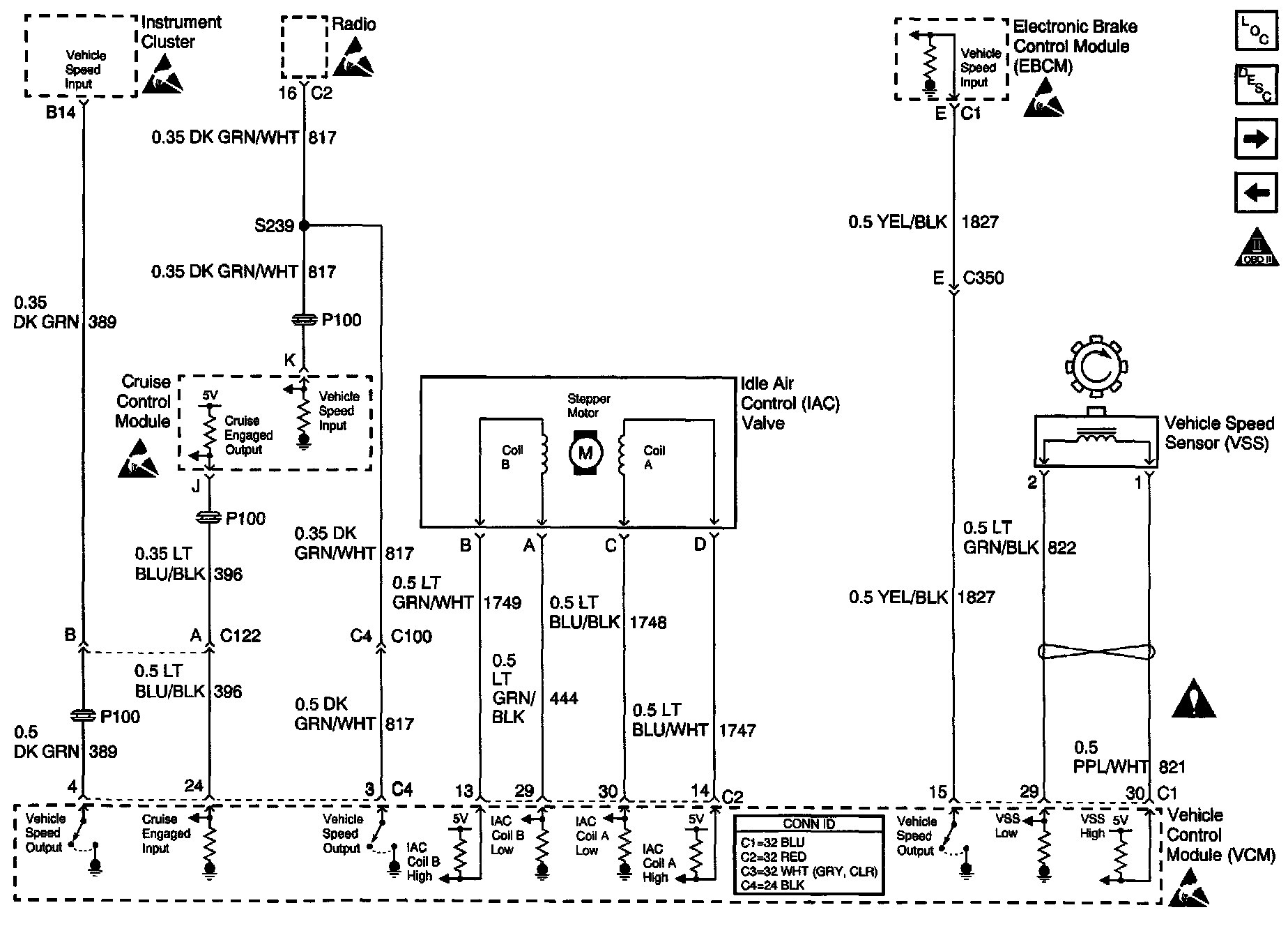

Engine Controls Schematics: Vehicle Speed Sensor, IAC, And Cruise Control:
