Home >> Chevy Truck >> 2000 >> Express 3/4 Ton Van V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> Automatic Transmission Controls Schematics (Switches and VSS)

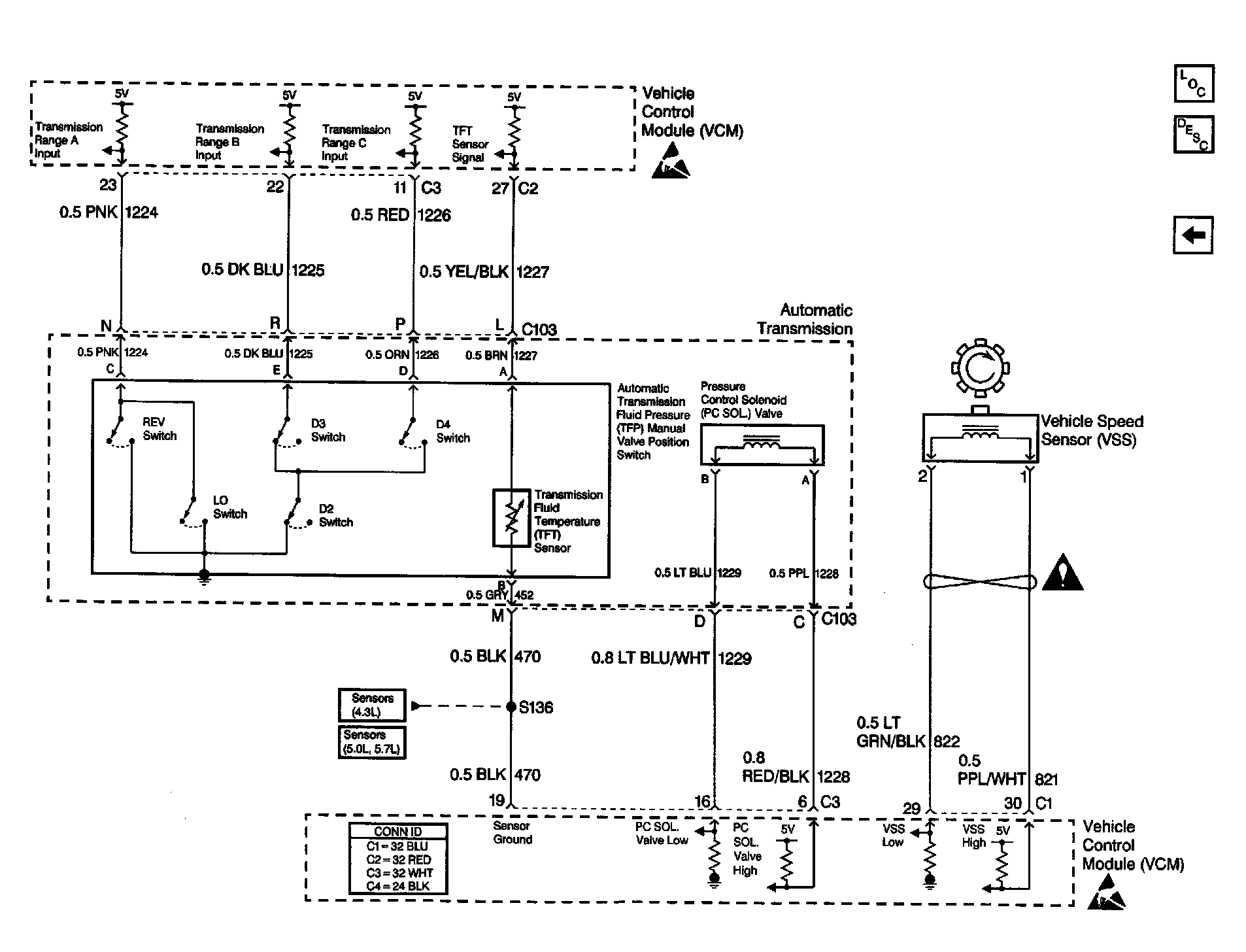

Automatic Transmission Controls Schematics (Switches and VSS)
