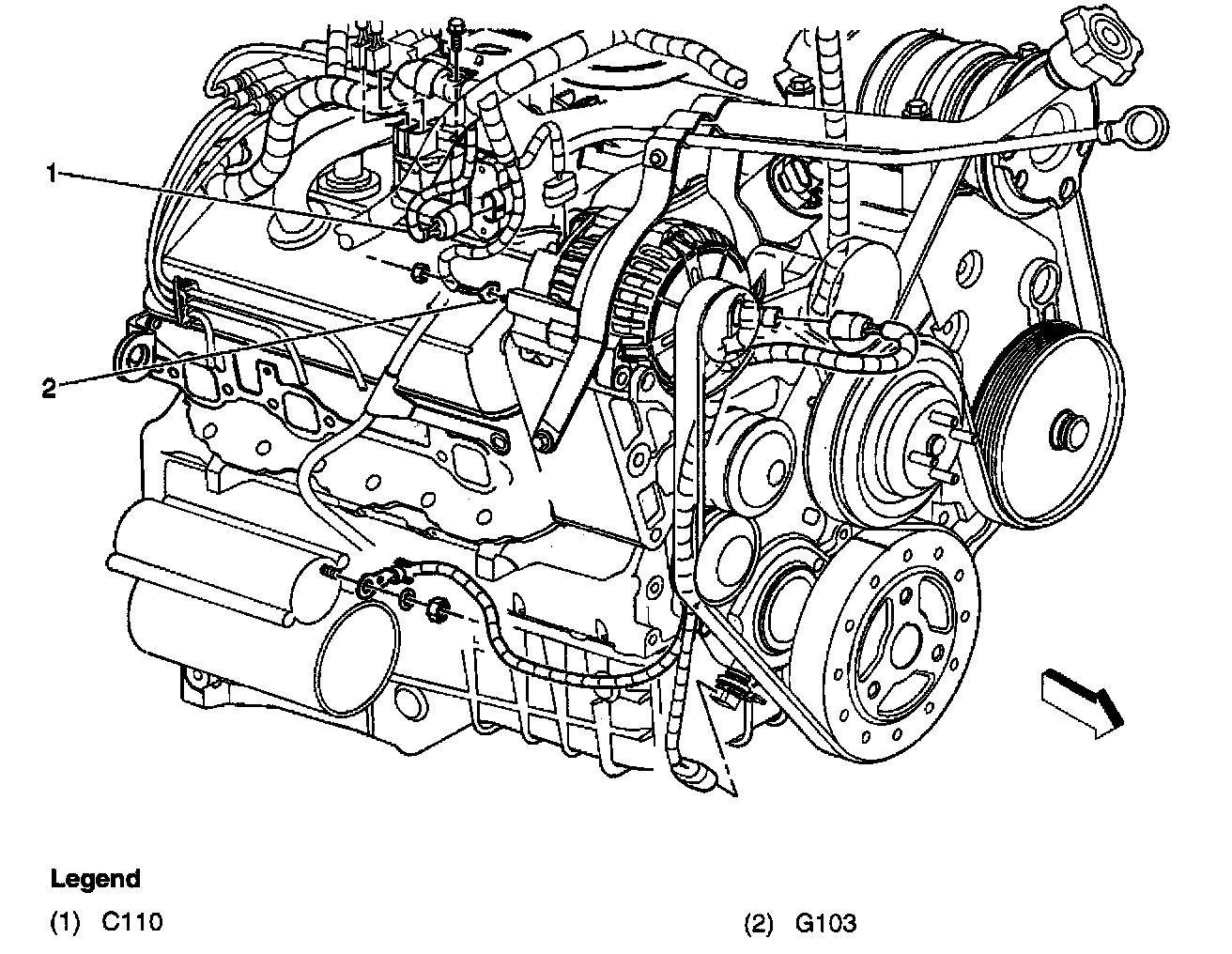

Engine Harness View - Right Side
Engine Harness View - Right Side
Harness Routing Views (4.3L Engine Harness, Right Side):
