Home
>>
Chevy Truck
>>
2000
>>
Express 3/4 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Rear Defogger Details-Swing Out Window
Rear Defogger Details-Swing Out Window

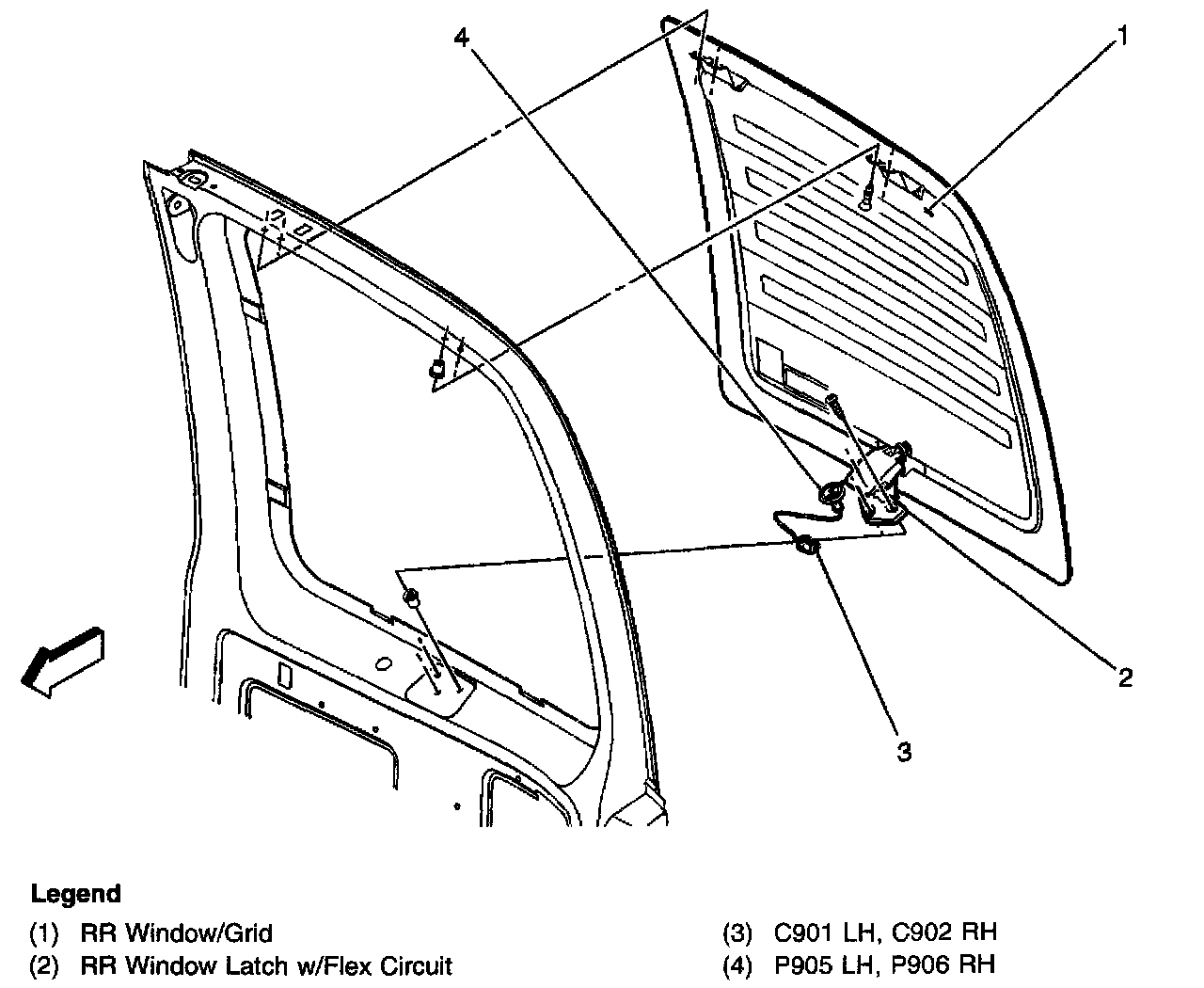

Harness Routing Views (Rear Defogger Details-Swing Out Window):
