Accessory Delay Module
>>
RAP2 Relay, G200, Power Sunroof Module R/F 4DR Only
RAP2 Relay, G200, Power Sunroof Module R/F 4DR Only

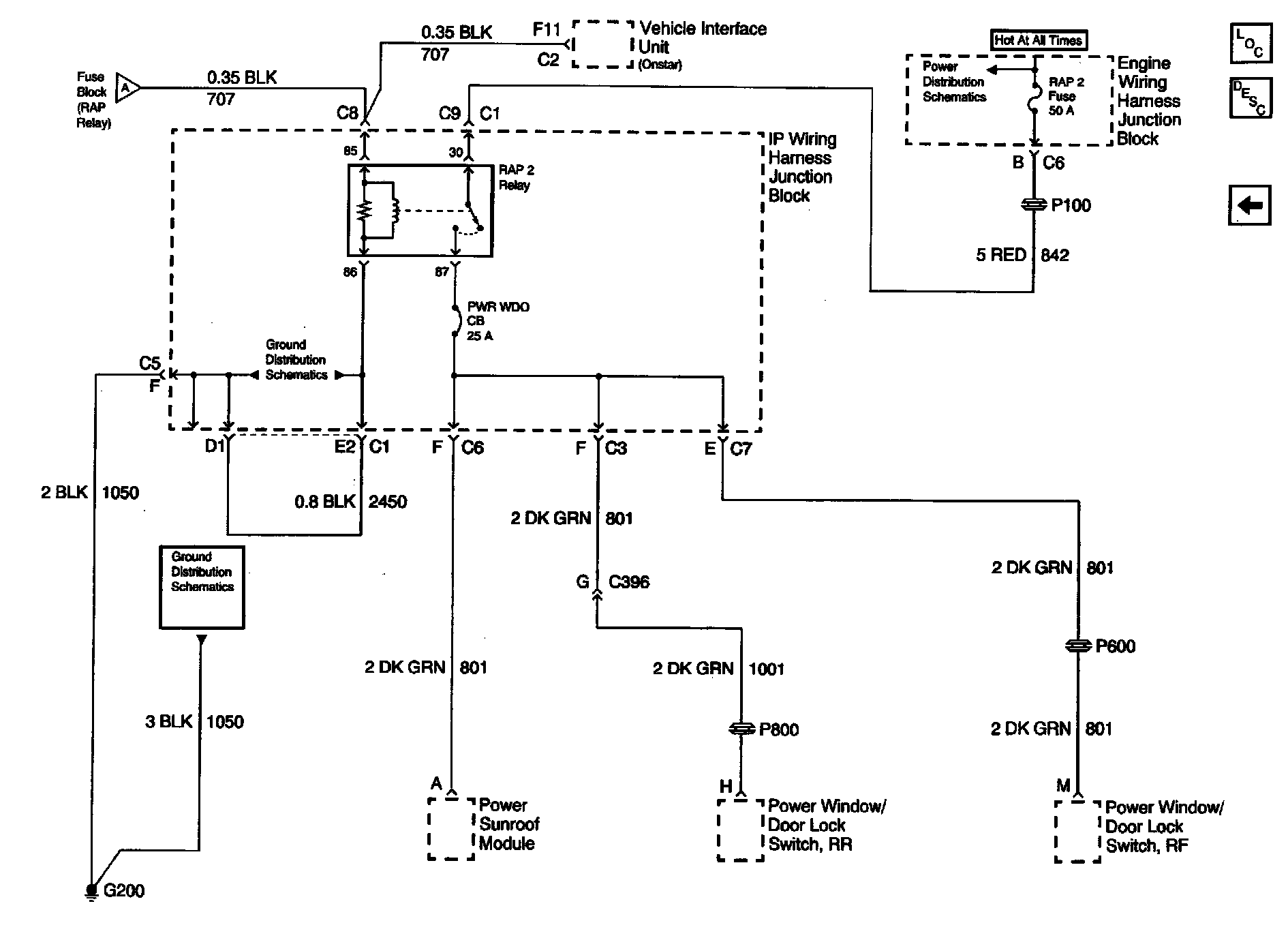

Retained Accessory Power (RAP) Schematics: RAP2 Relay, G200, Power Sunroof Module, RR and RF Power Window Switch 4DR Only:
