Inadverent Power Relay, Dome, Door and IP Courtesy Lamps

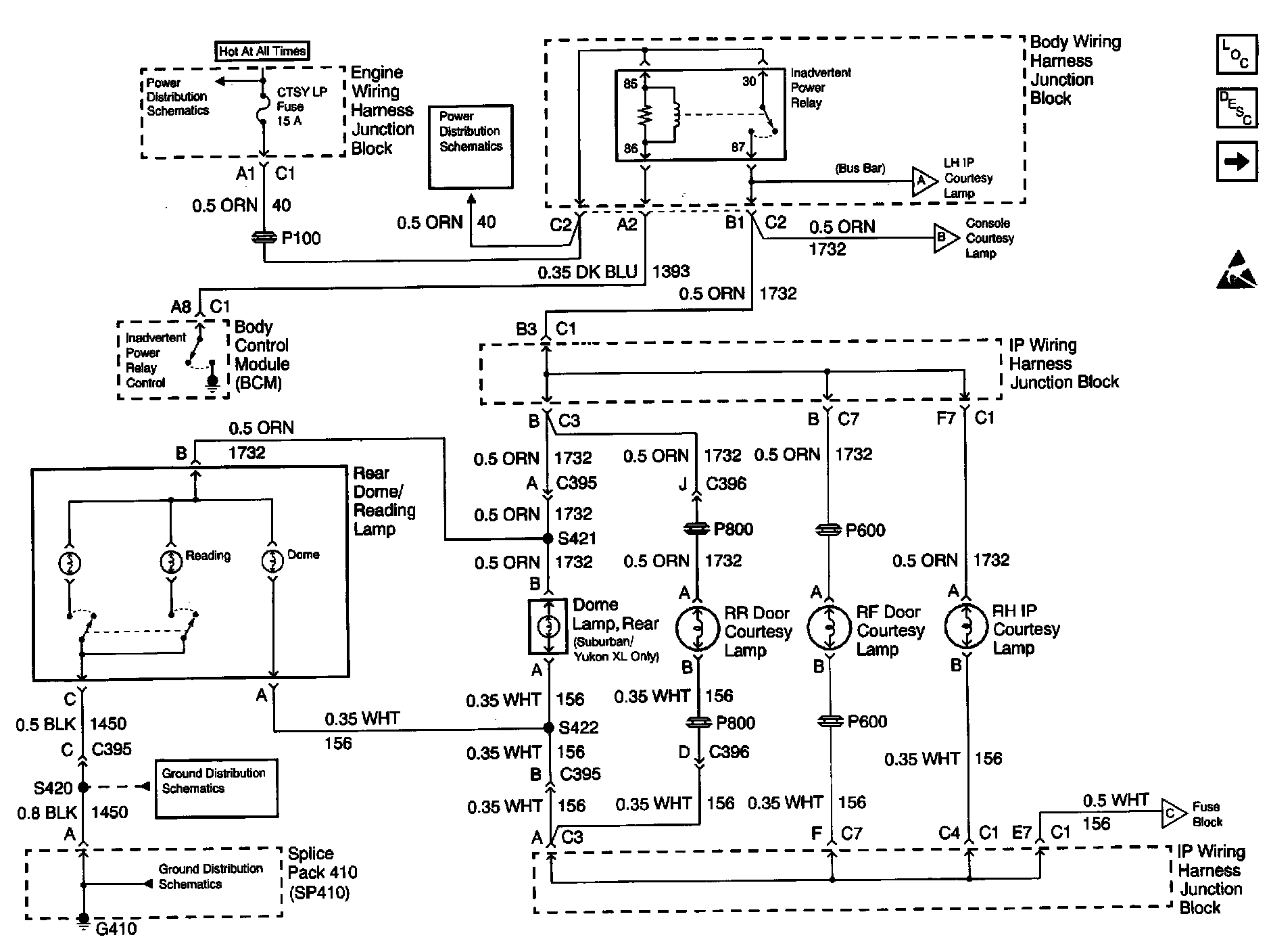

Interior Lights Schematics (Uplevel): Inadvertent Power Relay, Dome, Door And IP Courtesy Lamps:
