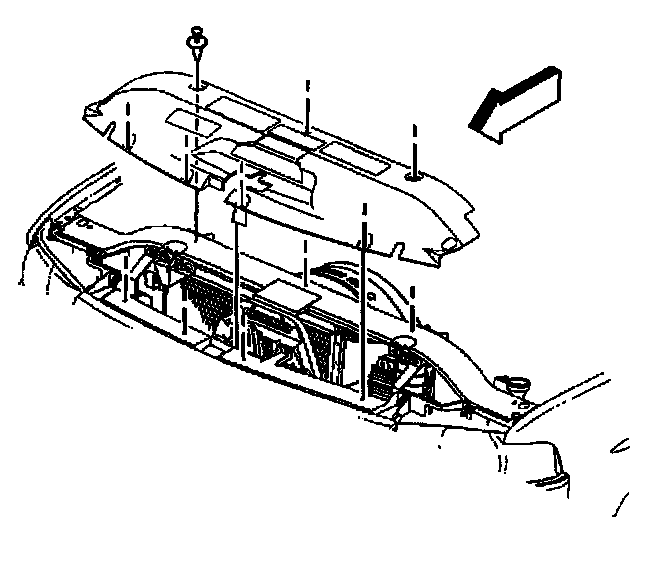

Radiator Air Baffle Assemblies and Deflectors (Upper)

Removal Procedure





1. Remove the radiator baffle retainers.
2. Remove the radiator baffle.

Installation Procedure





1. Install the radiator baffle.
2. Install the radiator baffle retainers.
