C322 (Power Seat Harness Inline to Lumbar Switch, RH)
C322 (Power Seat Harness Inline to Lumbar Switch, RH)

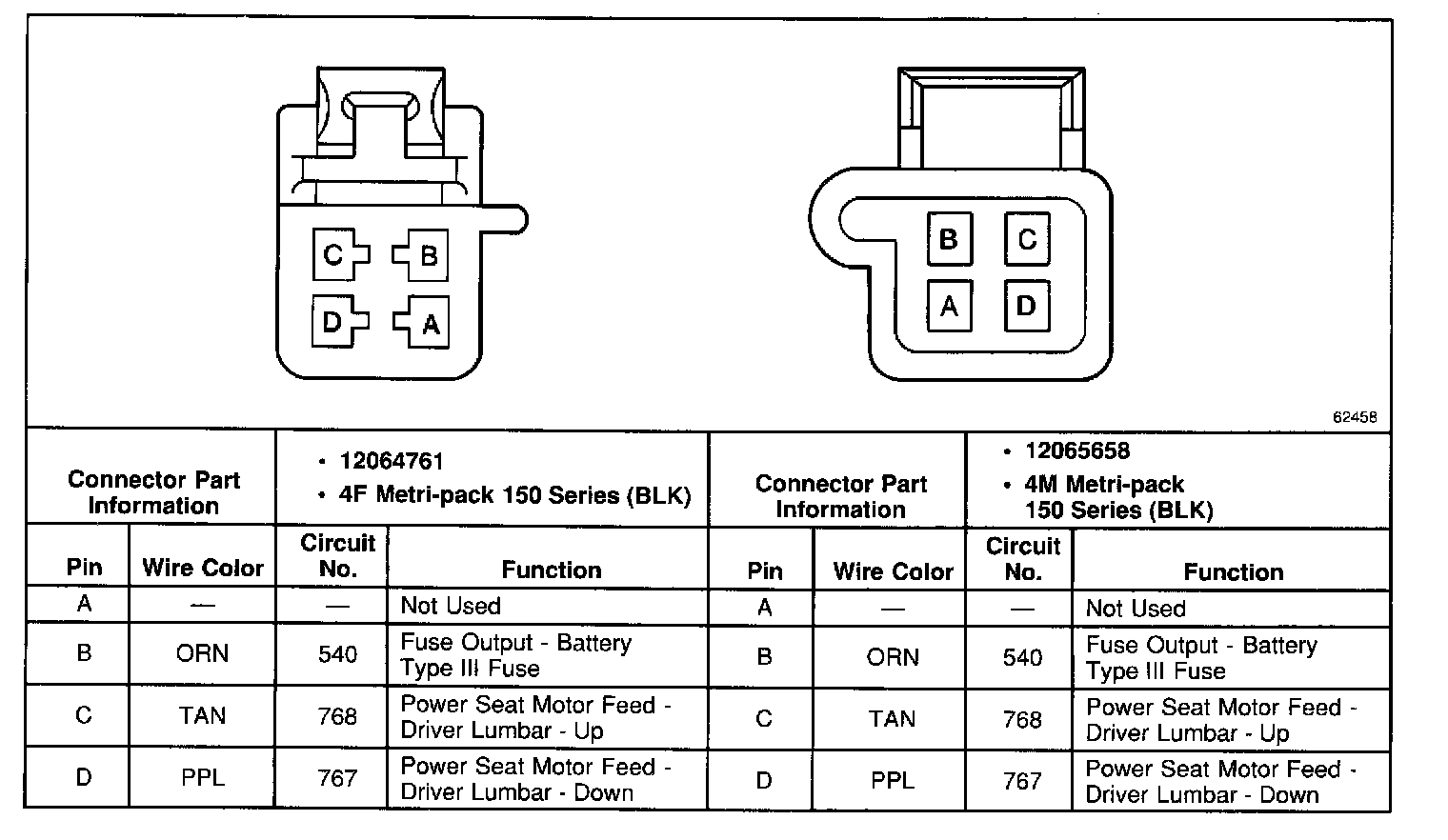

C322 (Power Seat Harness Inline to Lumbar Switch, RH):
