19. Cylinder Head Removal - Right

1. Remove the spark plugs from the cylinder head.

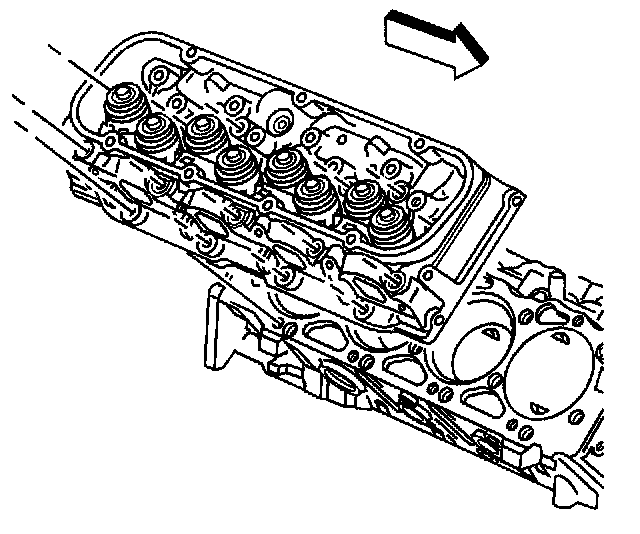

2. Remove and discard the cylinder head bolts (1, 2).





Notice: After removal, place the cylinder head on two wood blocks to prevent damage.

3. Remove the cylinder head.

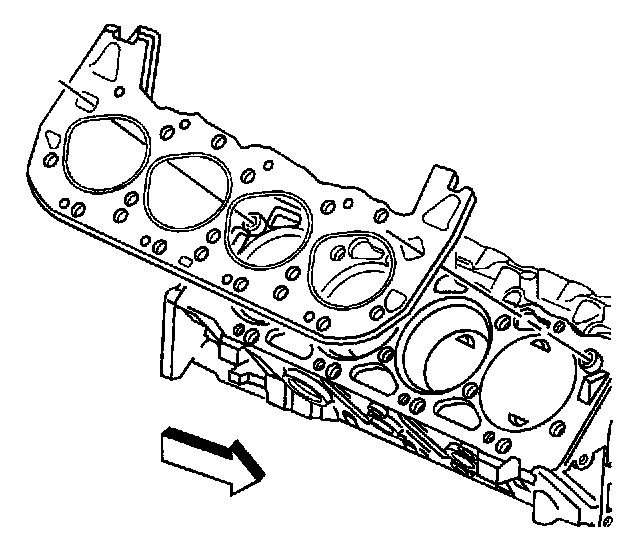

4. Remove the cylinder head gasket.
5. Discard the cylinder head gasket.

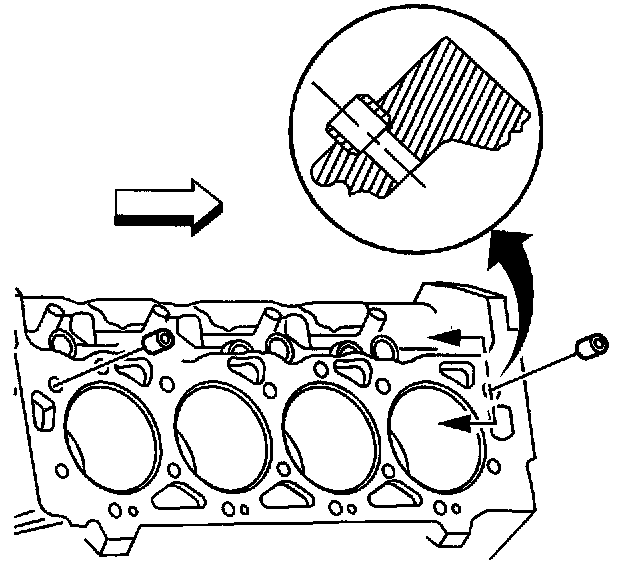

6. Remove the cylinder head locating pins, if required.
