Wiper Motor
>>
C402 (FRT to Rear Harness Inline to Windshield Wiper M,Rear)
C402 (FRT to Rear Harness Inline to Windshield Wiper M,Rear)

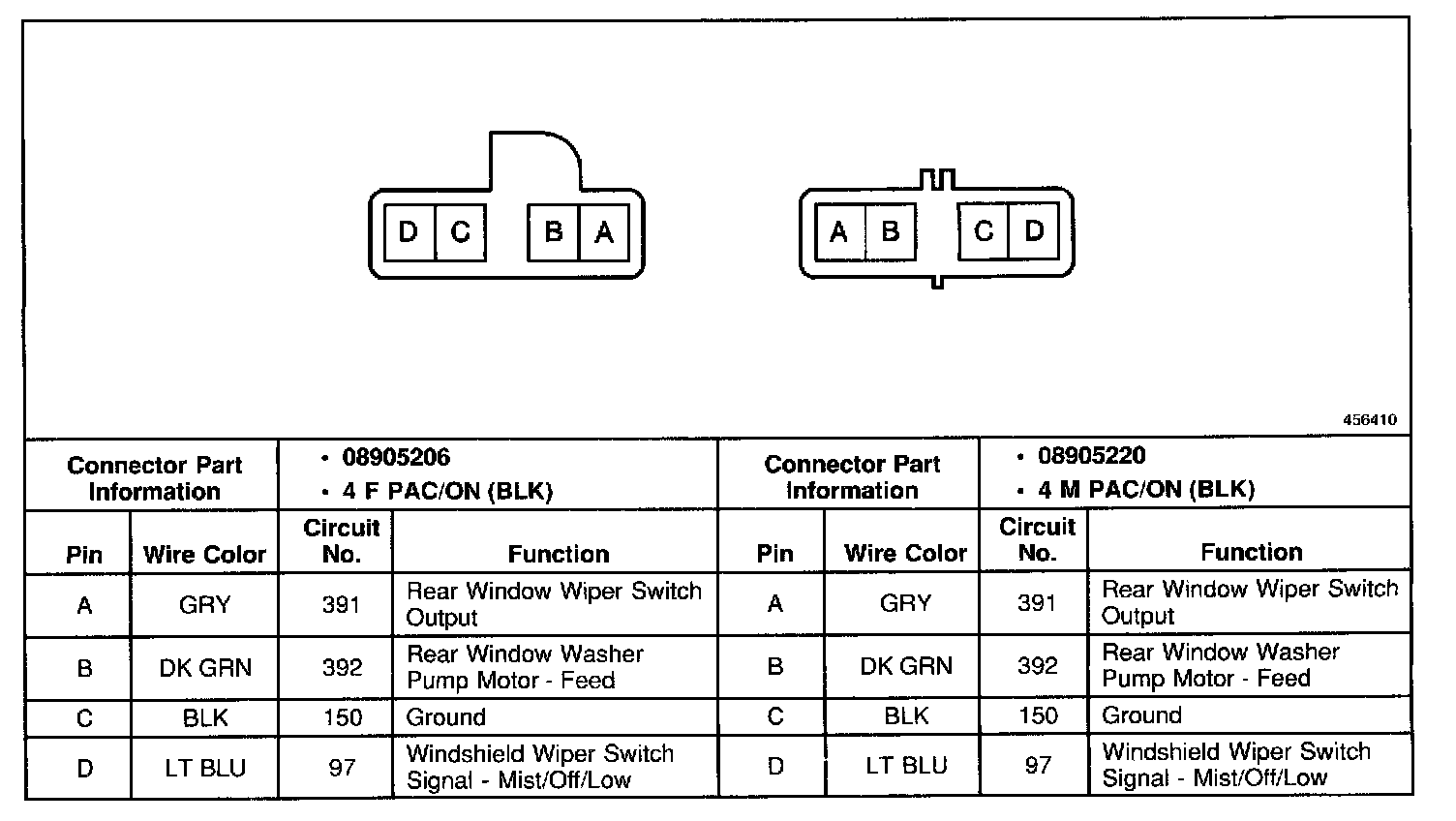

C402 (Front to Rear Harness Inline to Windshield Wiper Motor, Rear):
