C101 (Engine Harness to Body Harness, 16 Cavities)
C101 (Engine Harness to Body Harness, 16 Cavities)

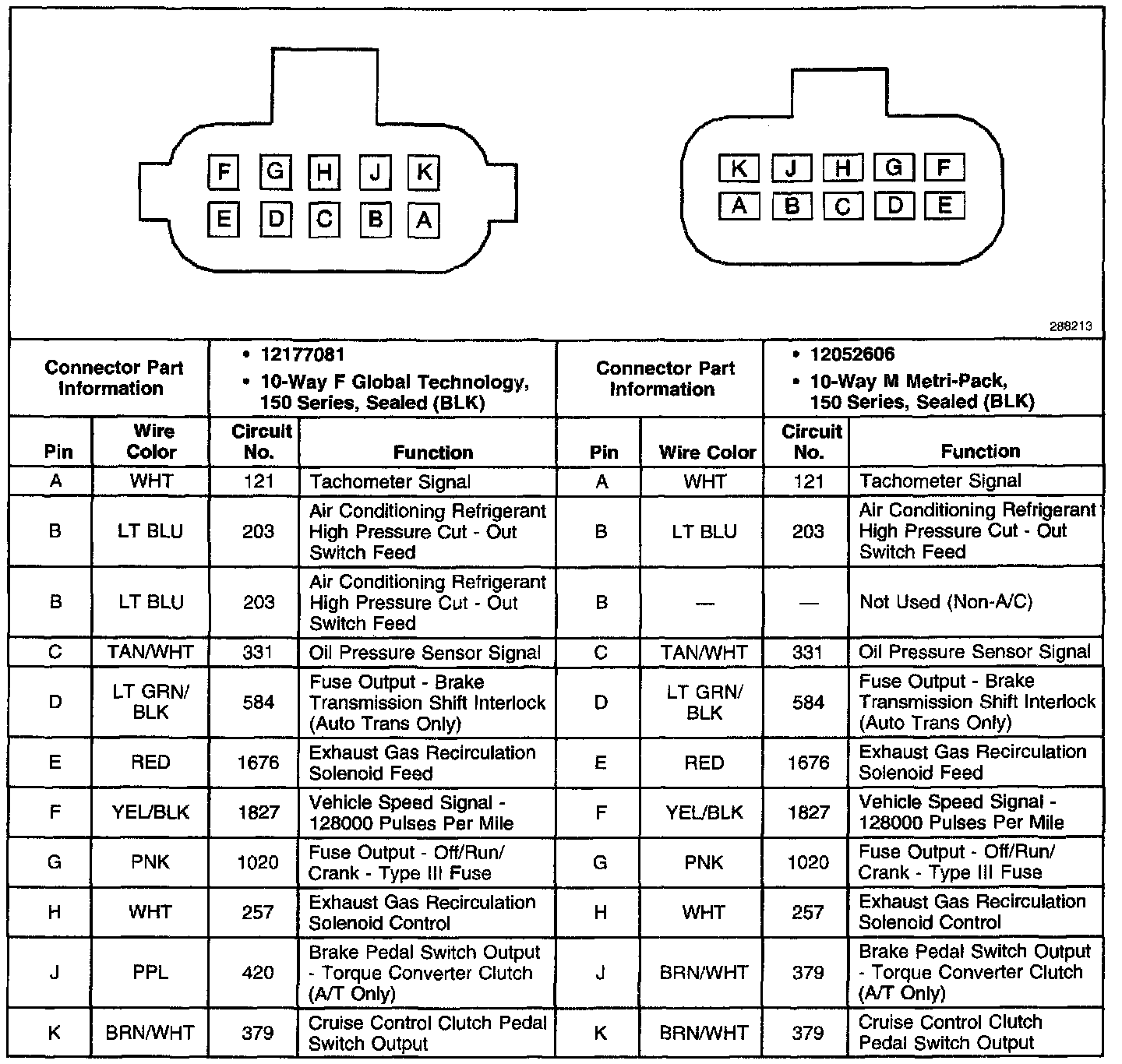

C101 (Engine Harness To Body Harness 4.3L Engine, 10 Cavities):
