B0175

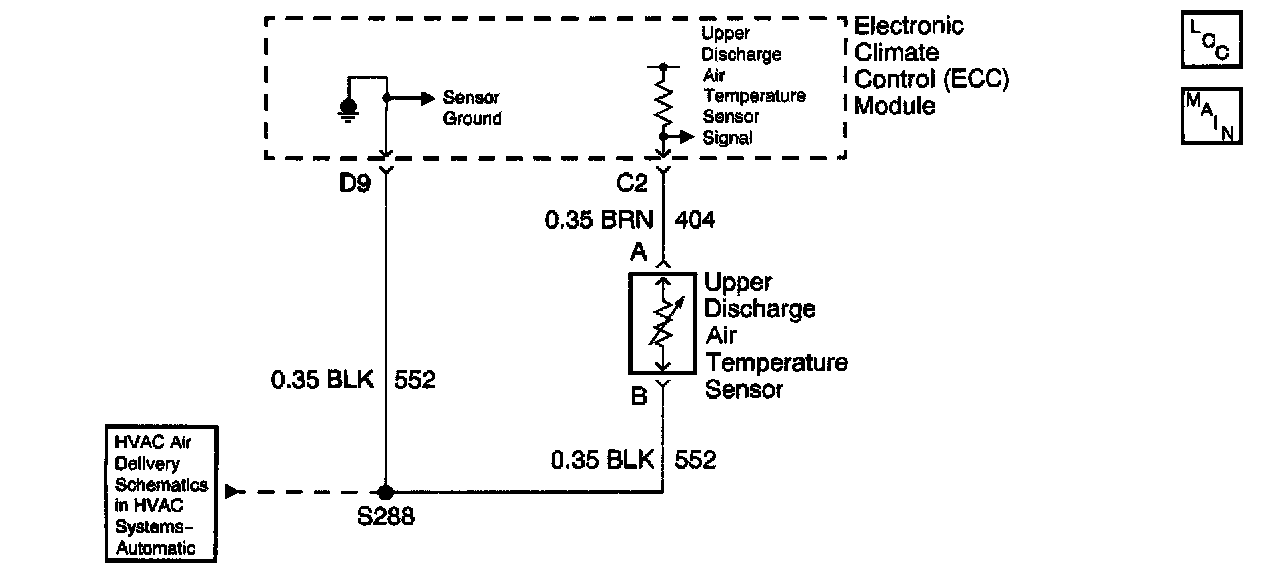

Schematic:

CIRCUIT DESCRIPTION
The HVAC control module monitors the upper air duct temperature via an upper air temperature sensor. When the air is cold, the sensor resistance and the signal voltage are high. When the air is warm, the sensor resistance and the signal voltage are low. The HVAC control module requests A/C compressor clutch engagement and controls the door position of the air temperature actuator in order to maintain the selected air temperature on the HVAC control module.

Conditions for Running the DTC
The ignition is turned ON.

Conditions for Setting the DTC
The HVAC control module detects the fault whenever the temperature is at or below -40°C (-40°F).

Action Taken When the DTC Sets
The HVAC control module uses a default temperature sensor value of 105°C (221°F) until the fault is cleared.

Conditions for Clearing the DTC
^ The DTC becomes history when the HVAC control module no longer detects a failure.
^ The history DTC clears after 50 fault-free ignition cycles.
^ The DTC can be cleared with a scan tool.

Diagnostic Aids
^ Visually inspect the sensor connector and harness for corrosion and damage. The resistance value of the sensor must be 47-101,000 Ohms. If the resistance is not within the specified value, replace the sensor.
^ Insure upper air temperature sensor is in place and secure. Insure no restrictions or debris around upper air temperature sensor this will give incorrect reading to HVAC control module.
^ If condition is not present refer to Testing for Intermittent and Poor Connections in Diagrams.

TEST DESCRIPTION

Steps 1-12:

The number(s) below refer to the step number(s) on the diagnostic table.
3. Tests for the proper operation of the circuit in the high voltage range.
4. Tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.
