C0327

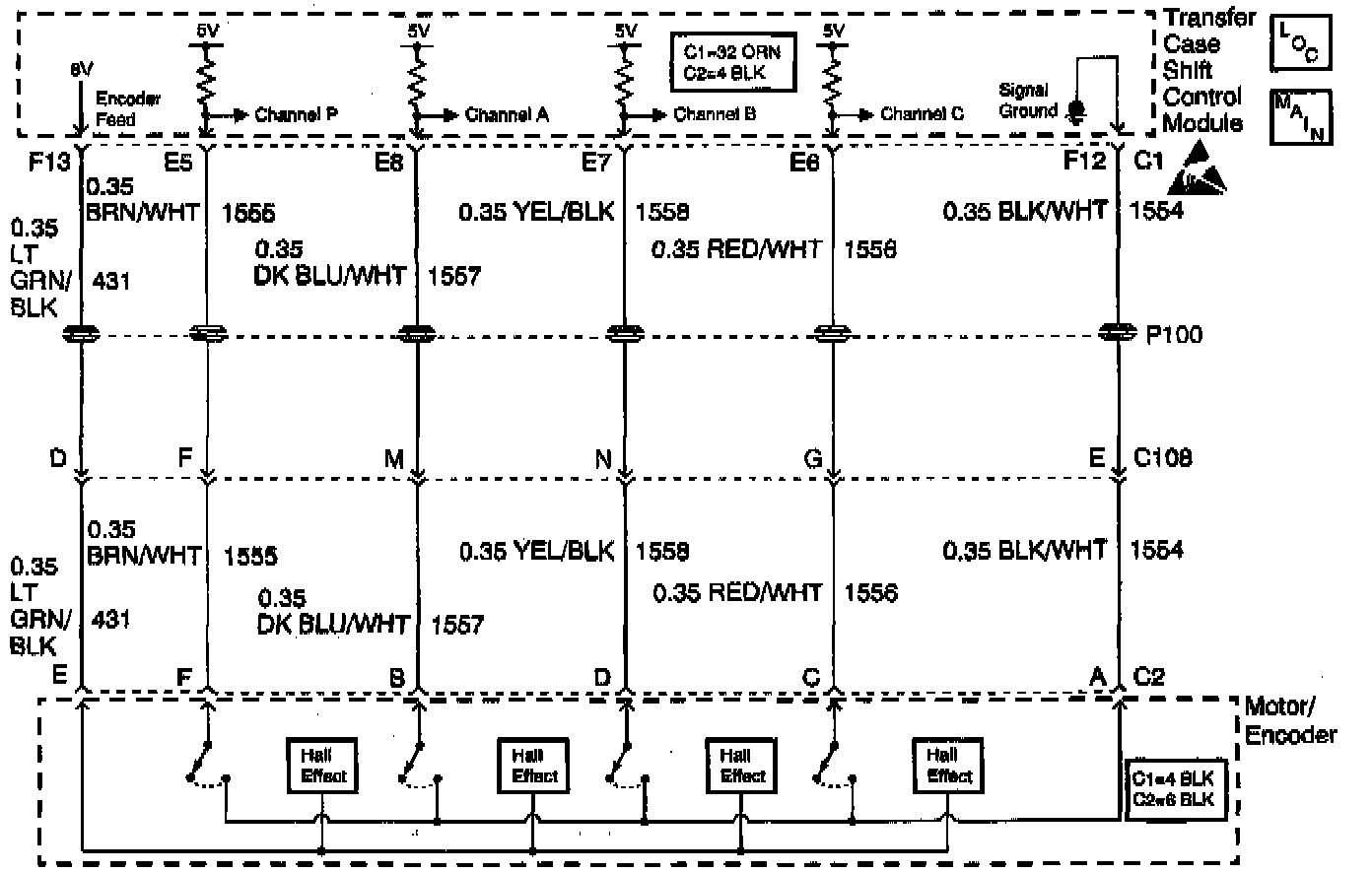

Circuit Description
The transfer Case Encoder is a switch that converts a shaft position, representing a mode or range position, into electrical signals for use by the transfer case shift control module. The encoder houses 4 Hall effect sensors that are used for channels P, A, B, and C. These sensors provide a path to ground, when a magnet, (part of the Motor Encoder), passes over them.
The transfer case shift control module supplies an 8 V reference and a ground circuit for the encoder Hall effect sensors to function.
The transfer case shift control module supplies current limited 5 V on all the channels, thus as these channels are pulled to ground, the module can interpret the location of the transfer case shift position.
This DTC detects an open, short to ground, or a short to voltage (12 V) in the encoder feed circuit, an open in the signal ground circuit, an open, short to ground, or short to voltage (12 V) in the Encoder channel circuits.

Conditions for Setting the DTC
The transfer case shift control module reads back all high or low voltage on the Encoder channel circuits.

Action Taken When the DTC Sets
^ All motor activity will stop and the Transfer Case Lock engaged.
^ A default rail to rail shift may be allowed, (toggle between 4H and 2H).
^ The SERVICE indicator (4WD/AWD) lamp will be latched on for the remainder of the current ignition cycle.

Conditions for Clearing the DTC
^ The transfer case shift control module will clear the DTC if the condition for setting the DTC no longer exists.
^ A history DTC will clear after 100 consecutive ignition cycles without a fault present.
^ History DTCs can be cleared using a scan tool.

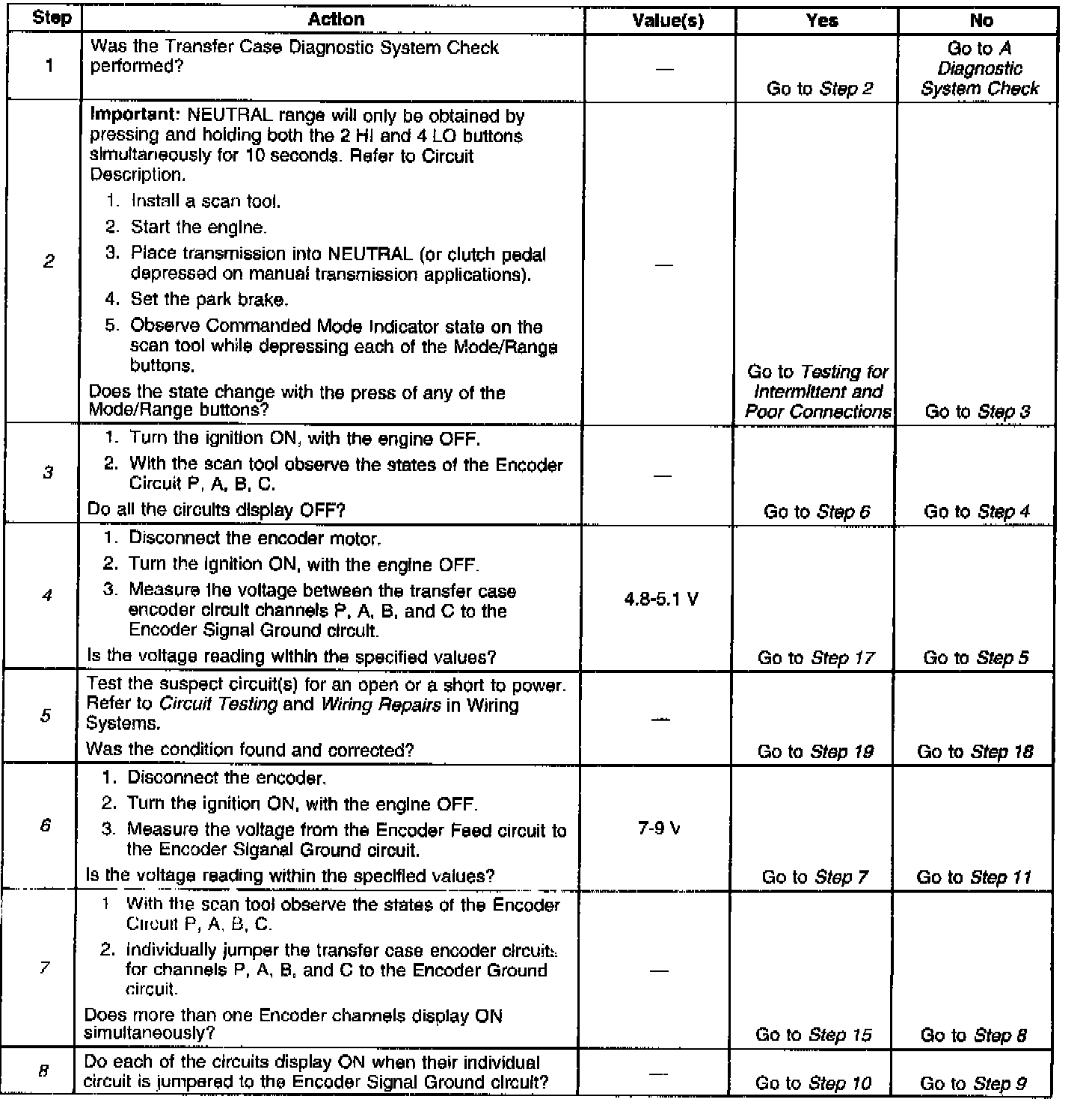

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
2. Tests the operation of the system.
3. Helps determine if the encoder has supply voltage.
4. Tests the encoder channels for proper reference voltage.
5. Tests the encoder channels for an open or a short to power.
6. Measures the voltage from the Encoder Feed reference circuit to the Encoder Signal Ground circuit.
7. Tests for two or more encoder channels shorted together.
8. Bypasses the encoder and tests each encoder channel individually. Helps isolate between encoder and module malfunctions.
9. Tests the suspect encoder channel(s) for an open.
10. Tests the encoder channels for proper reference voltage
11. Helps determine if the circuit is shorted to voltage.
12. Tests the Encoder Feed circuit for a short to voltage.
13. Tests the Encoder Signal Ground circuit for high resistance or an open.
14. Tests the Encoder Feed circuit for an open.
15. Repairs shorted condition between the circuits that were simultaneously turned ON in Step 6.
16. Tests the encoder channel(s) that are not within the specified range previously tested in Step 9.
