Cruise Control Servo Cable: Service and Repair

REMOVAL PROCEDURE




1. Open the hood.

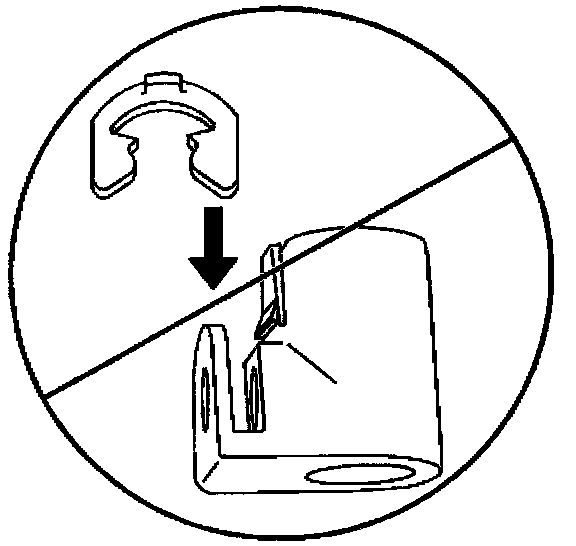

IMPORTANT: Do not remove the C clip from the cruise control end connector.

2. The C clip was not designed for removal. Damage may occur.




3. Do not remove the adjuster screw from the end of the cruise control cable. No adjustment will be needed.




4. Remove the cruise control cable from the throttle linkage.

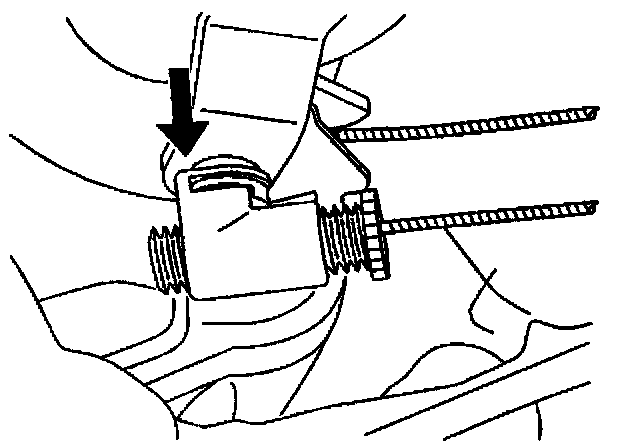

Use a suitable tool to lightly pry off the end of the cruise control cable from the stud on the throttle lever.




5. Disconnect the cruise control cable from the round hole in the engine cable bracket.




6. Disconnect the cruise control cable locator clip from the rectangular hole in the routing bracket.




7. Remove the cruise control cable from the cruise control module housing.

IMPORTANT: Do not allow the cruise control ribbon (1) to retract into the module assembly.

8. Disconnect the cruise control cable bead (2) from the end of the ribbon (1).
9. Remove the cruise control cable from the vehicle.

INSTALLATION PROCEDURE




1. Install the cruise control cable to the vehicle.
2. Remove all bends and twists from the cruise control module ribbon and cable, by rotating until removed.

IMPORTANT:

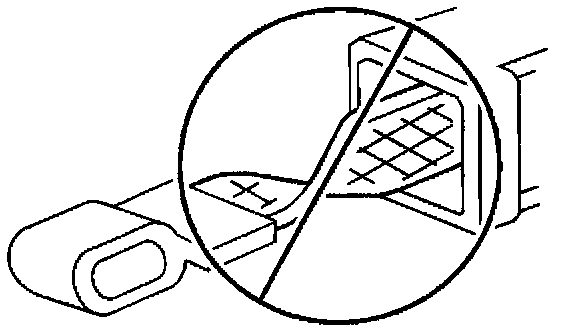

^ Do not twist the cruise control module ribbon (1).
^ Pull the cruise control cable (2) to verify retention to the ribbon (1).




3. Attach the cruise control cable bead (2) to the cruise control module ribbon (1).

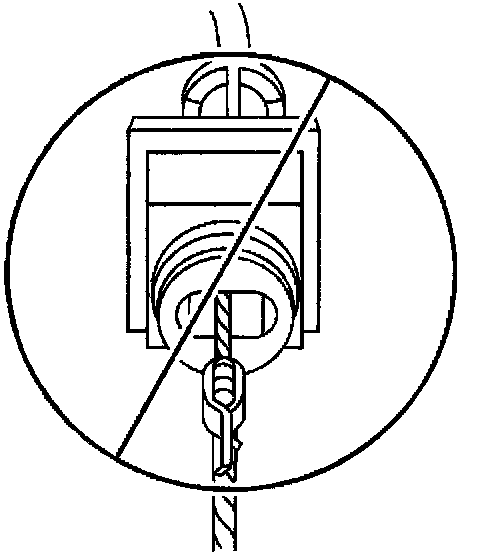

4. Check the orientation of the cruise control ribbon buckle to the cable end fitting.




5. Slide the cruise control cable conduit over the ribbon.
5.1. Instal the tangs to the cruise control module housing.
5.2. Ensure that the tangs snap securely into place.

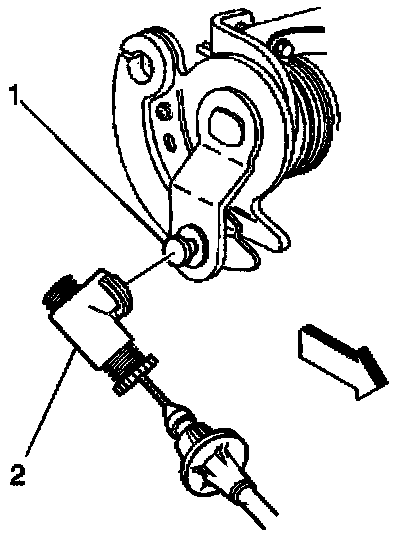

6. Snap the cruise control cable engine-end fitting (2) over the stud (1) on the throttle cam lever.

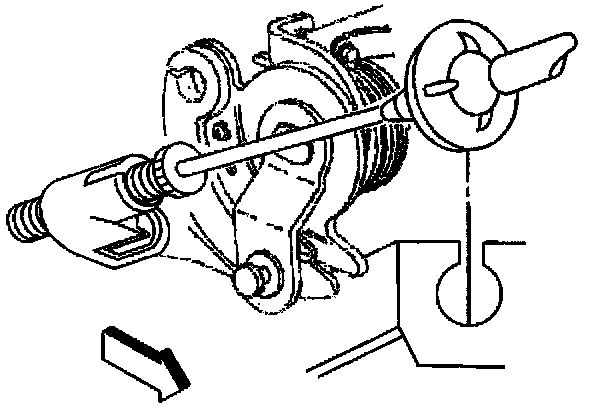

7. Connect the cruise control cable conduit fitting to the round hole in the engine cable bracket.
Ensure that the tabs snap securely into the hole.




8. Connect the cruise control cable locator clip to the rectangular hole in the routing bracket.
8.1. Route the cruise control cable above the accelerator cable.
8.2. Ensure that the clip snaps securely into place.




9. Connect the electrical connection to the cruise control servo module.
10. Test the systems operation.
11. Perform the Cruise Control System Functional Test. Refer to Cruise Control Functional Check
12. Close hood.
