Amplifier, Sound System
>>
Amplifier Connector C2
Amplifier Connector C2

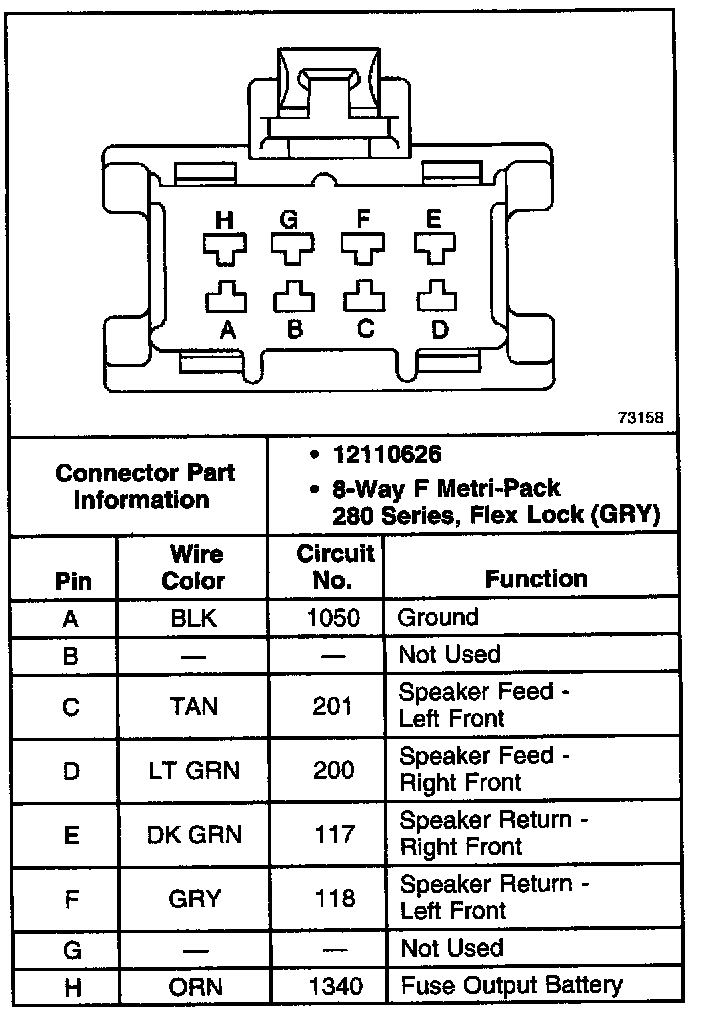

Amplifier Connector C2 (Part 1 Of 2):
