Chevy Truck
>>
2000
>>
S10/T10 P/U 4WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>

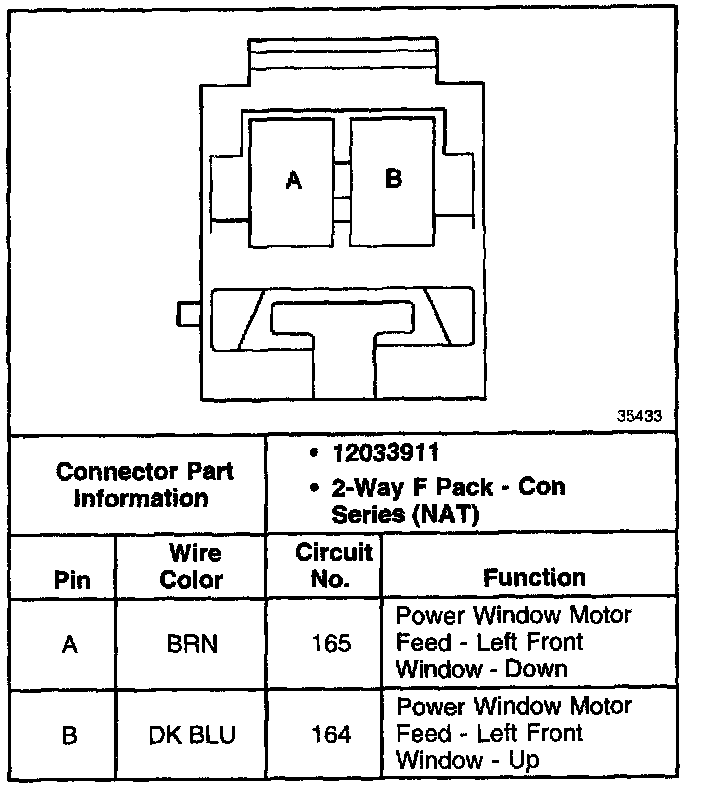

Side Window Regulator Motor, LF Connector
Side Window Regulator Motor, LF Connector
Side Window Regulator Motor, LF Connector:
