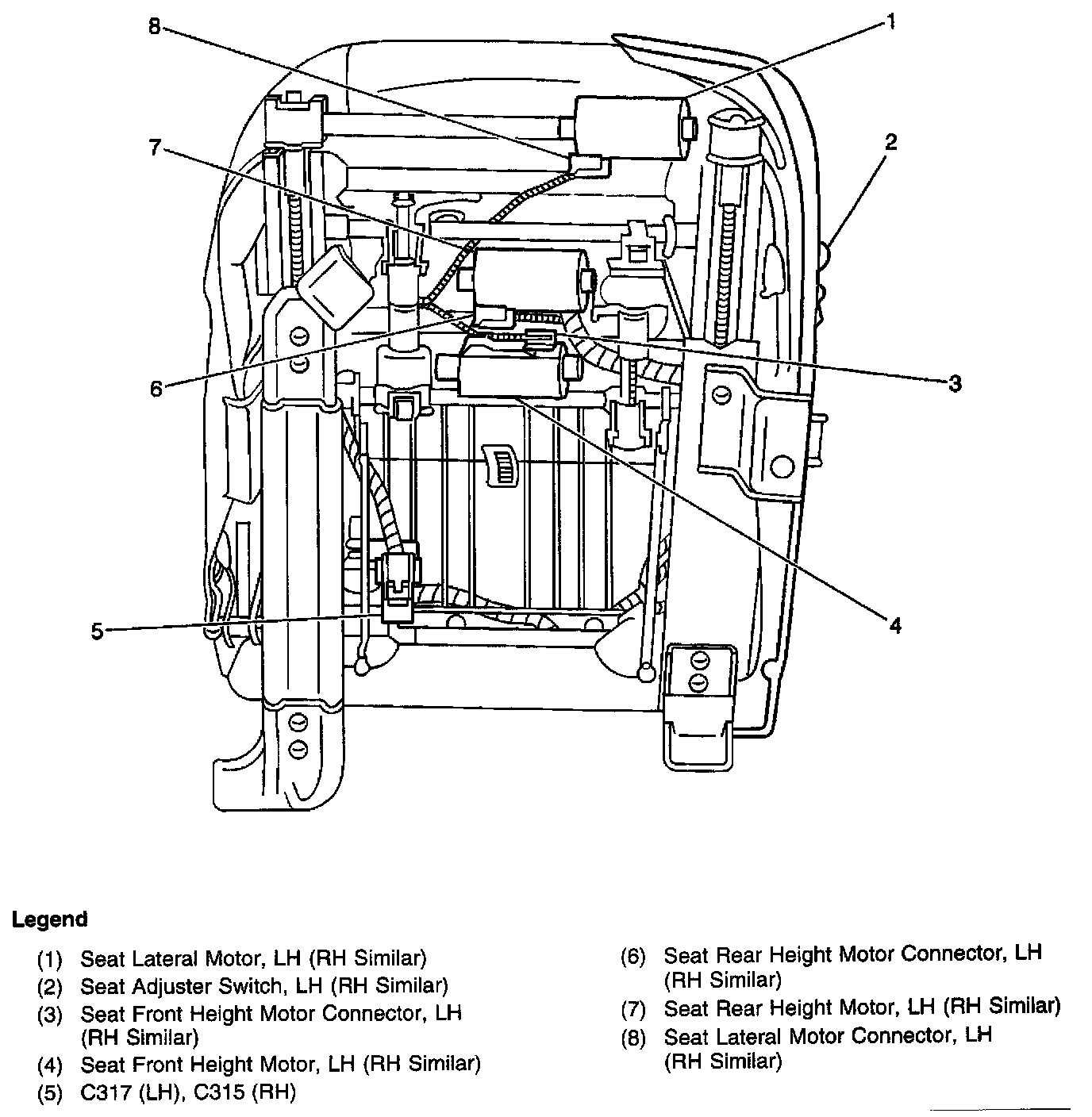

Seat Front Height Motor Connector, LH (RH Similar)
Seat Front Height Motor Connector, LH (RH Similar)
Locations View:
