Home >> Chevy Truck >> 2000 >> S10/T10 P/U 4WD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> VSS Inputs, 4WD Low Indicator Signal

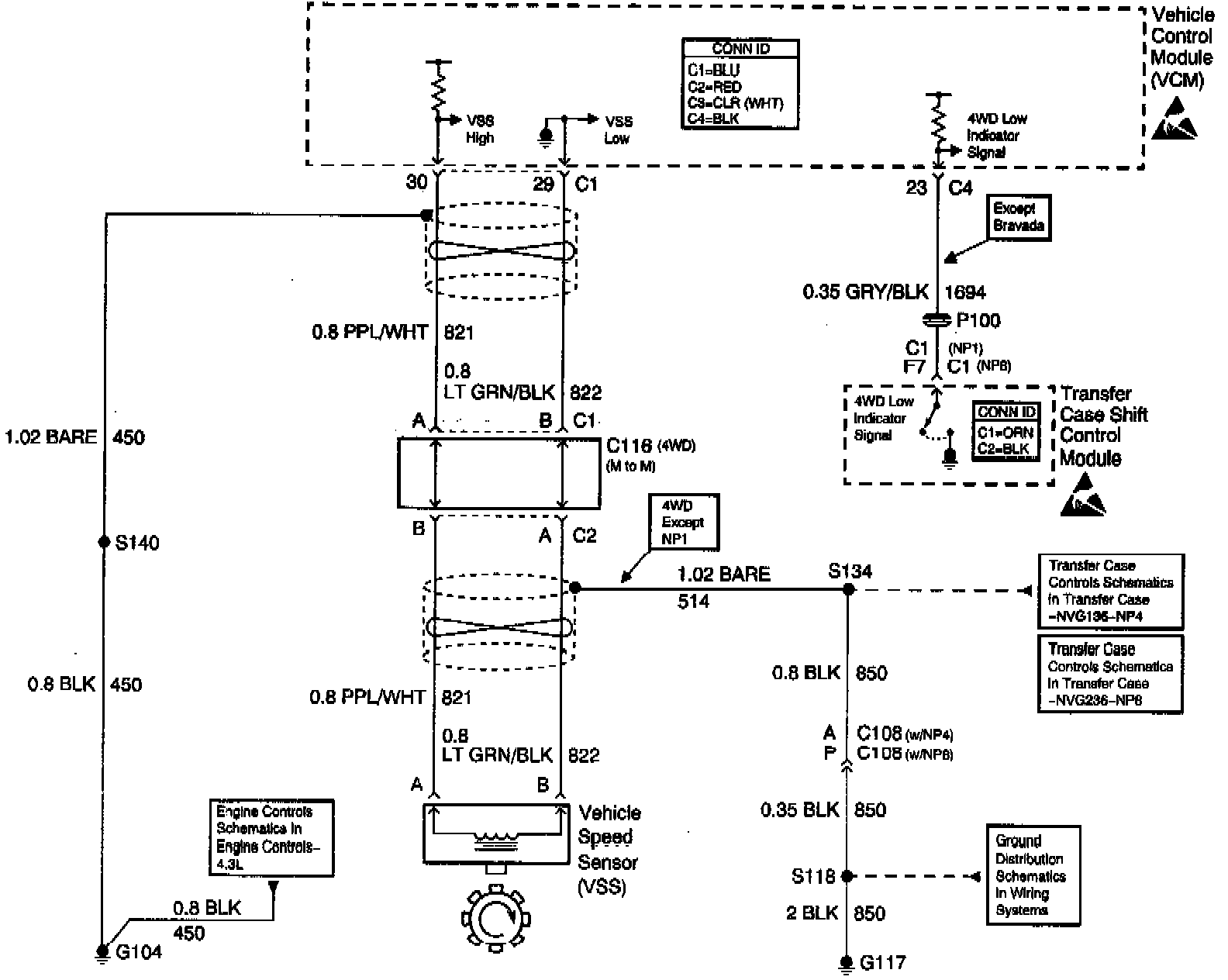

VSS Inputs, 4WD Low Indicator Signal
