Heater Core: Service and Repair

HEATER CORE REPLACEMENT






REMOVAL PROCEDURE
1. Remove the heat/vent module. Service and Repair

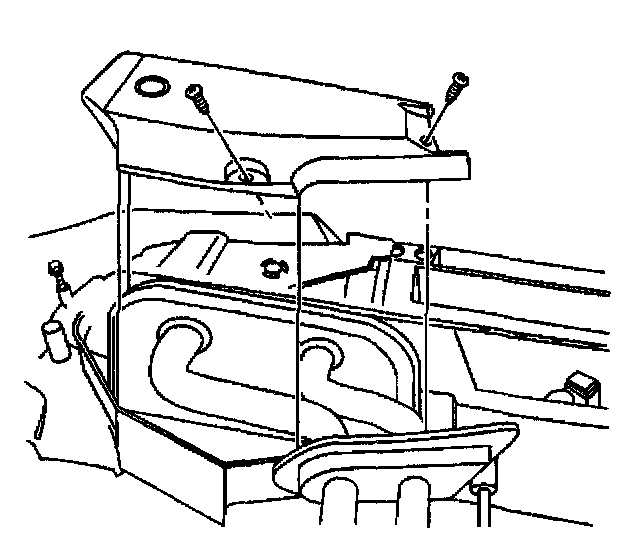

2. Remove the heater core access cover screws.
3. Remove the heater core access cover.

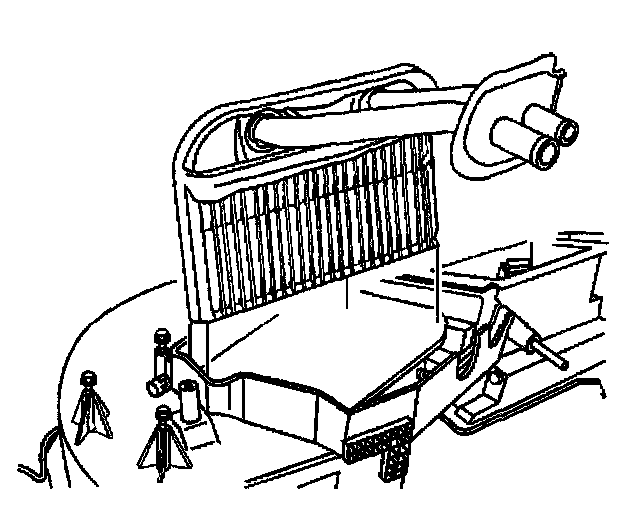

4. Remove the heater core from the heat/vent module.

INSTALLATION PROCEDURE






1. Install the heater core in the heat/vent module.

NOTE: Refer to Fastener Notice in Service Precautions.






2. Install the heater core access cover.

TIGHTEN
Tighten the heater core access cover screws to 1.9 Nm (17 lb in).

3. Install the heat/vent module. Service and Repair
