Front Foglamp - Park/Turn Signal Assembly Replacement

REMOVAL PROCEDURE
1. Ensure that the front fog lamp switch is in the OFF position.
2. Ensure that the ignition switch is in the LOCK position.
3. Remove the headlamp assembly from the vehicle.
4. Remove the grille from the vehicle.

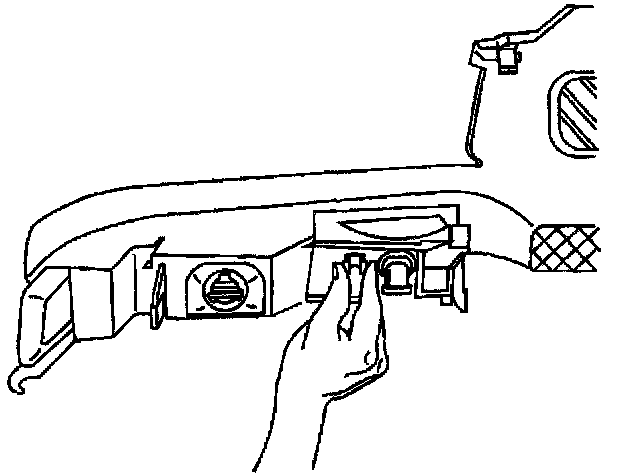

IMPORTANT: Squeeze together the retainer at the back of the [1][2]turn signal lamp assembly in order to release the assembly from the grille.

5. Remove the [1][2]turn signal lamp assembly with the front fog lamp from the grille.
6. Remove the front fog lamp adjustment screw.
7. Remove the front fog lamp from the [1][2]turn signal lamp assembly.
8. Remove the bulb from the front fog lamp base.

INSTALLATION PROCEDURE
1. Install the bulb to the front fog lamp base.
2. Install the front fog lamp to the [1][2]turn signal lamp assembly.
3. Install the front fog lamp adjustment screw.
4. Install the [1][2]turn signal lamp assembly with the front fog lamp to the grille.
5. Install the grille to the vehicle.
6. Install the headlamp assembly to the vehicle.
7. Adjust the front fog lamp. Refer to Fog Lamp Aiming Procedure.
