Ground Strap: Service and Repair

Additional ground straps are used to connect the body and the frame to the engine and the transmission. Always connect all ground straps in order to ensure a good ground path to the battery for all electrical components.

Refer to the illustrations for ground strap connection locations:

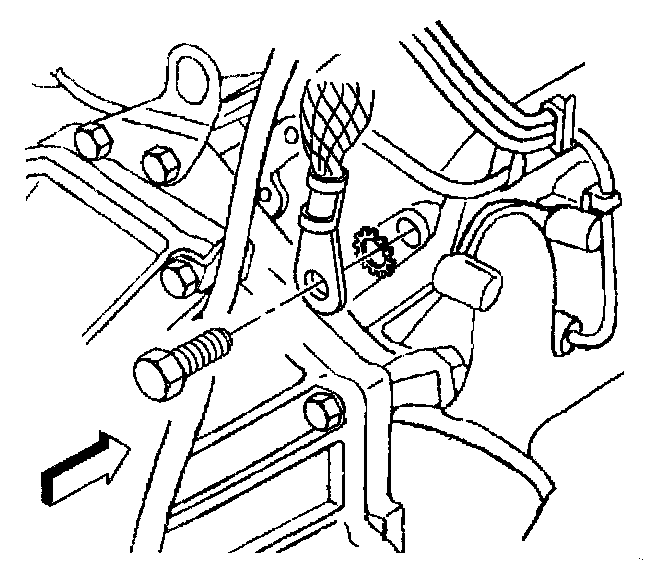

^ Engine ground strap connection to the engine.

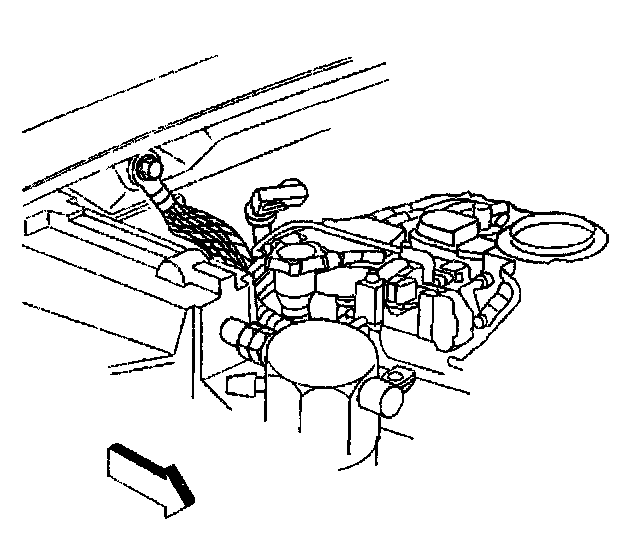

^ Engine ground strap connection to the cowl.
