Ignition Switch
Ignition Switch
Power Distribution Schematics: Ign RUN And START Bus Bar:

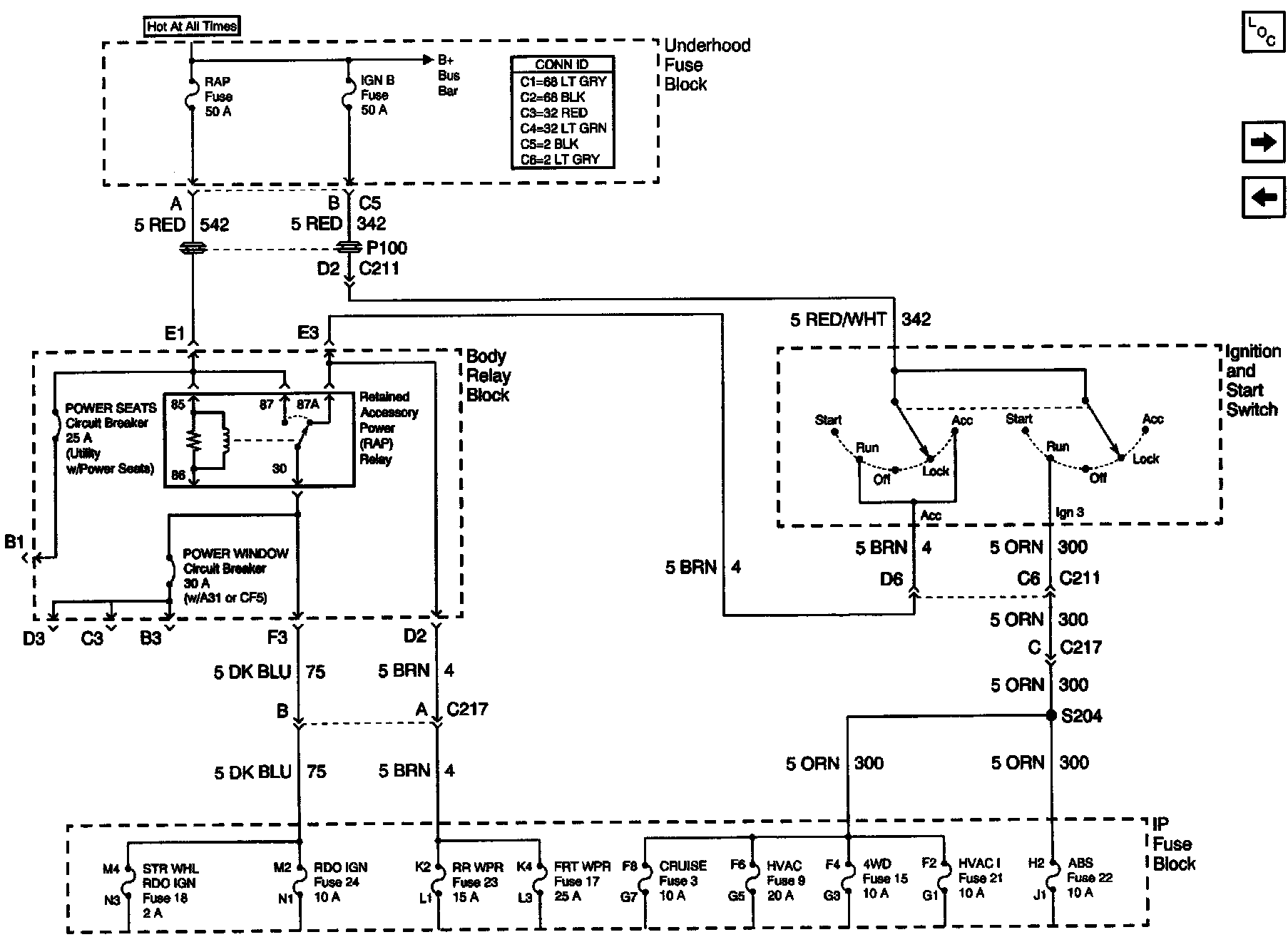

Power Distribution Schematics: Ign ACC, RUN And RAP Bus Bar:
