Suspension Control ( Automatic - Electronic ): Service and Repair

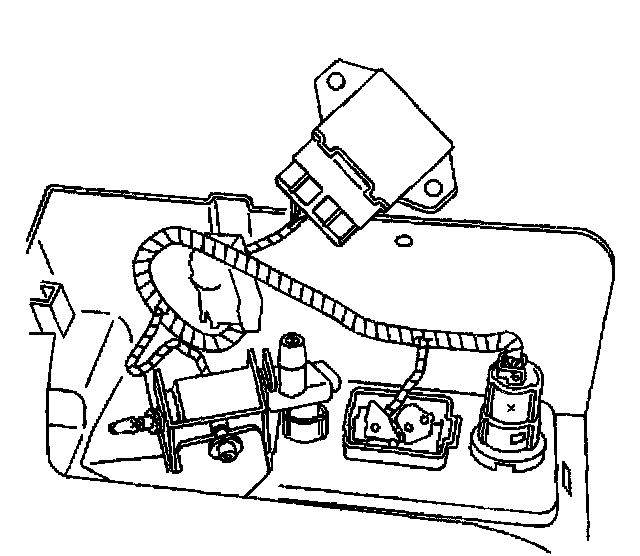

Removal Procedure





1. Remove the body side trim panel. Refer to Trim Panel Replacement - Body Side (Standard Cab Pickup) or Trim Panel Replacement - Body Side (Extended Cab Pickup) or Trim Panel Replacement - Body Side (2-Door Utility) or Trim Panel Replacement - Body Side (4-Door Utility) in Interior Trim.
2. Remove the automatic level control timer relay retainers.
3. Disconnect the electrical connector from the automatic level control timer relay.

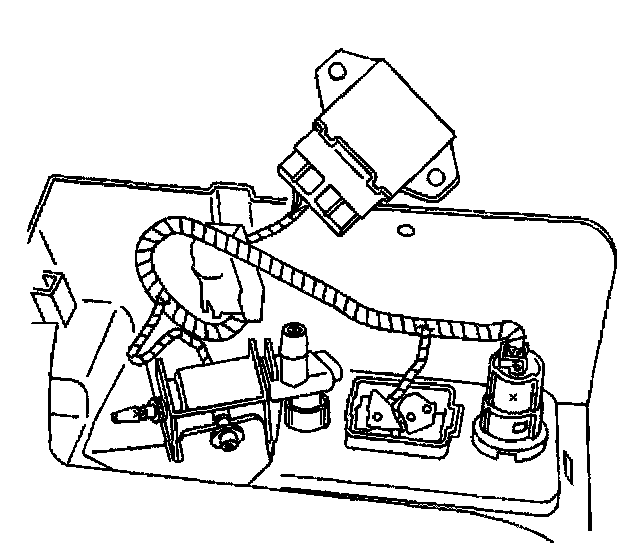

Installation Procedure





1. Connect the electrical connector to the automatic level control timer relay.
2. Install the automatic level control timer relay retainers.
3. Install the body side trim panel. Refer to Trim Panel Replacement - Body Side (Standard Cab Pickup) or Trim Panel Replacement - Body Side (Extended Cab Pickup) or Trim Panel Replacement - Body Side (2-Door Utility) or Trim Panel Replacement - Body Side (4-Door Utility) in Interior Trim.
