Headlamp Washer System Schematics (Export Only)
Headlamp Washer System Schematics (Export Only)

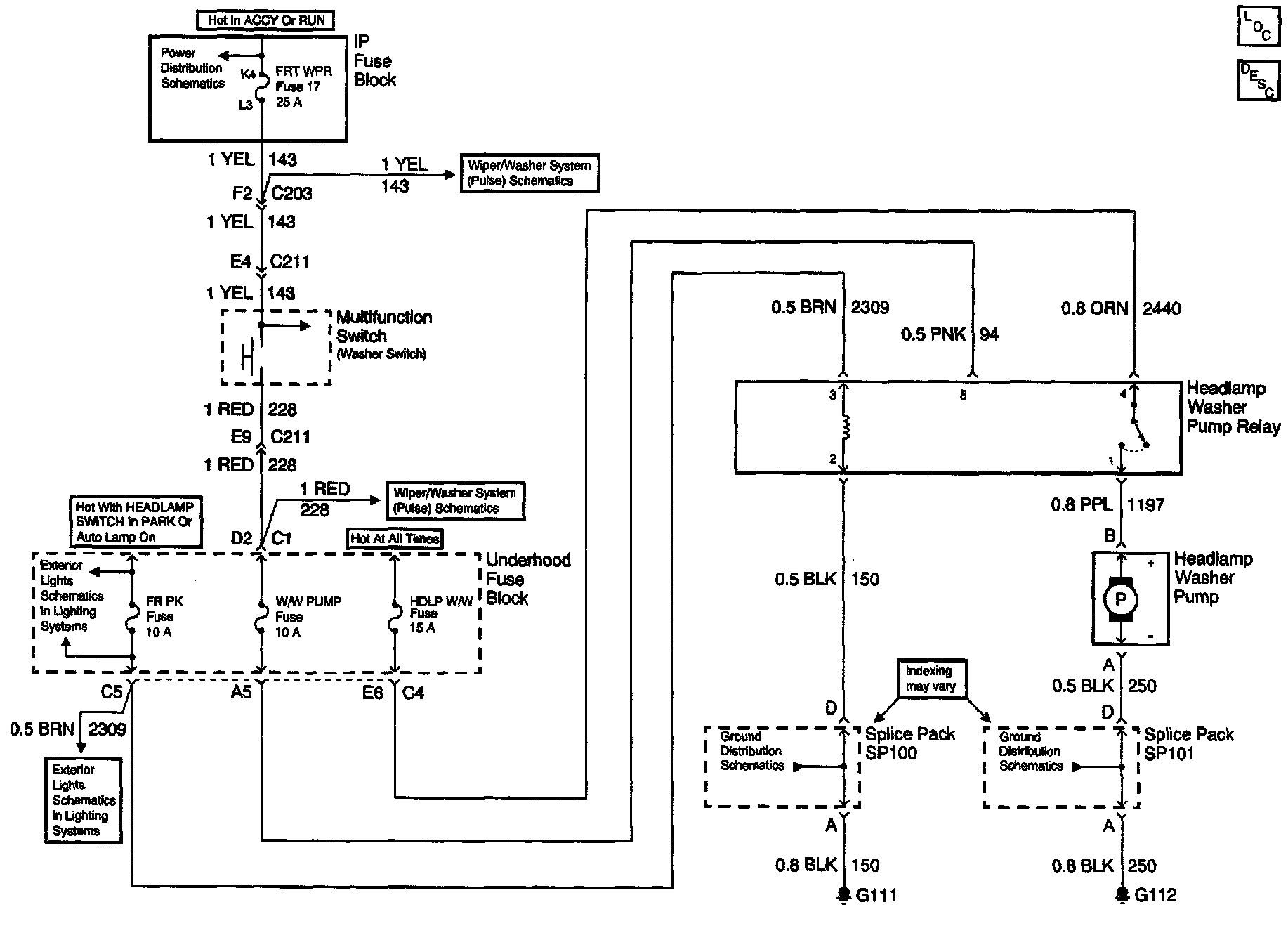

Headlamp Washer System Schematics (Export Only):
