Windshield Washer Spray Nozzle: Service and Repair

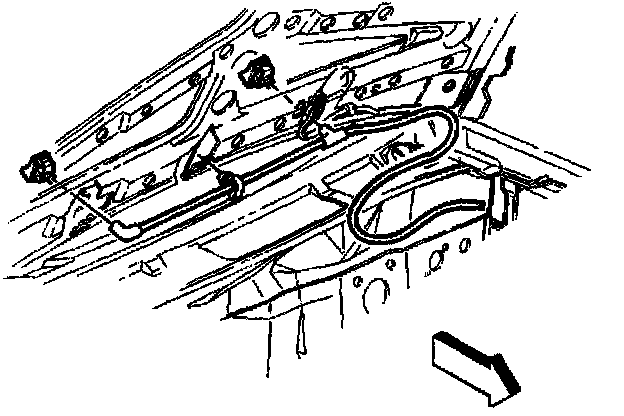

REMOVAL PROCEDURE
1. Raise and support the hood.
2. Disconnect the washer hose from the nozzle
3. Remove the nozzle.

INSTALLATION PROCEDURE
1. Install the nozzle to the hood by pressing into place.
2. Apply lubricant to the washer hose connectors.
3. Install the washer hose to the nozzle.
