Antilock Brake System Indicator, Accelerometer & Idle-Up Signal
Antilock Brake System Indicator, Accelerometer & Idle-Up Signal

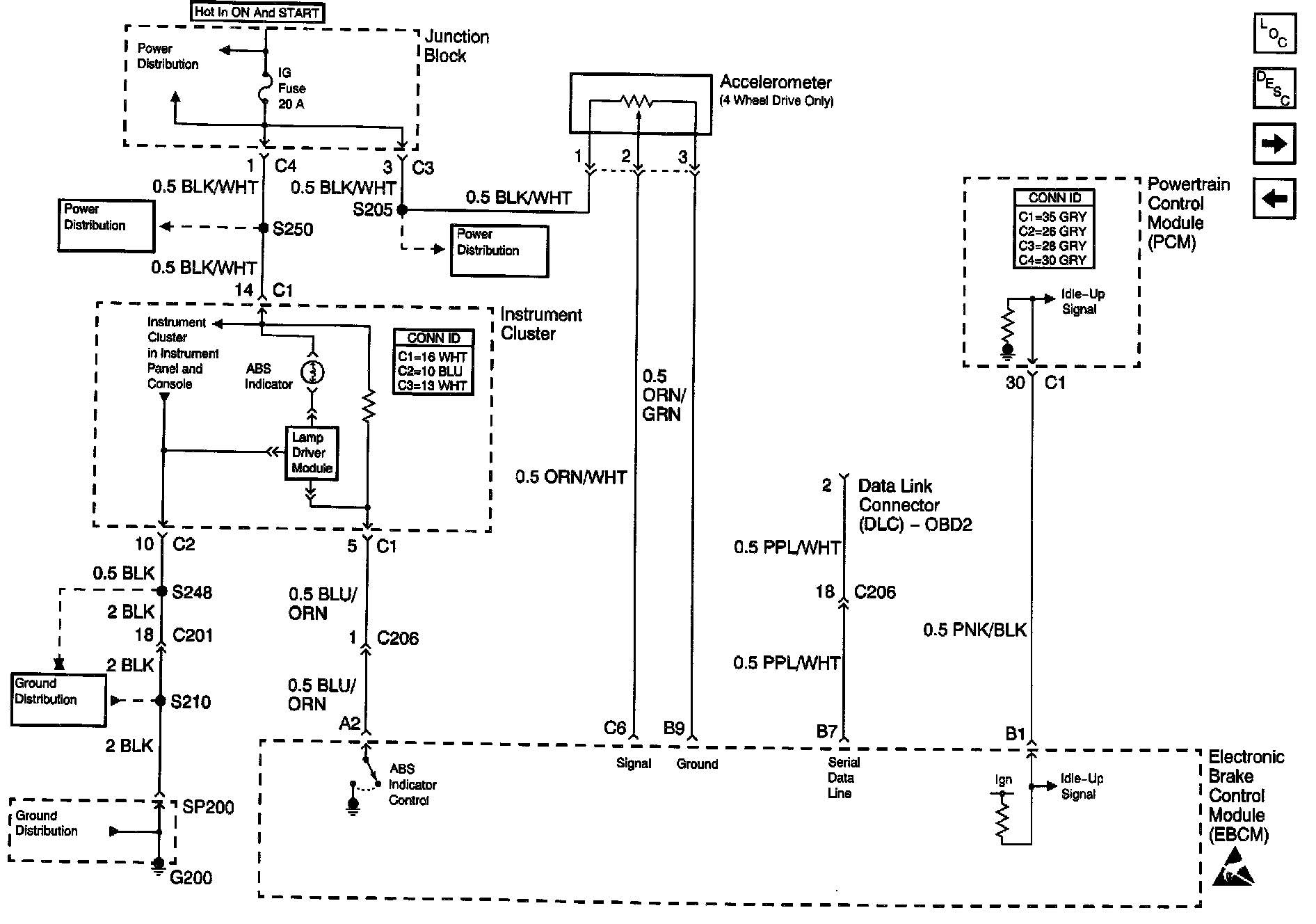

ABS Schematics: AntiLock Brake System (ABS) Indicator, Accelerometer, And Idle-Up Signal:
