Cruise Control
>>
Power, Ground and Stoplamp Switch
Power, Ground and Stoplamp Switch

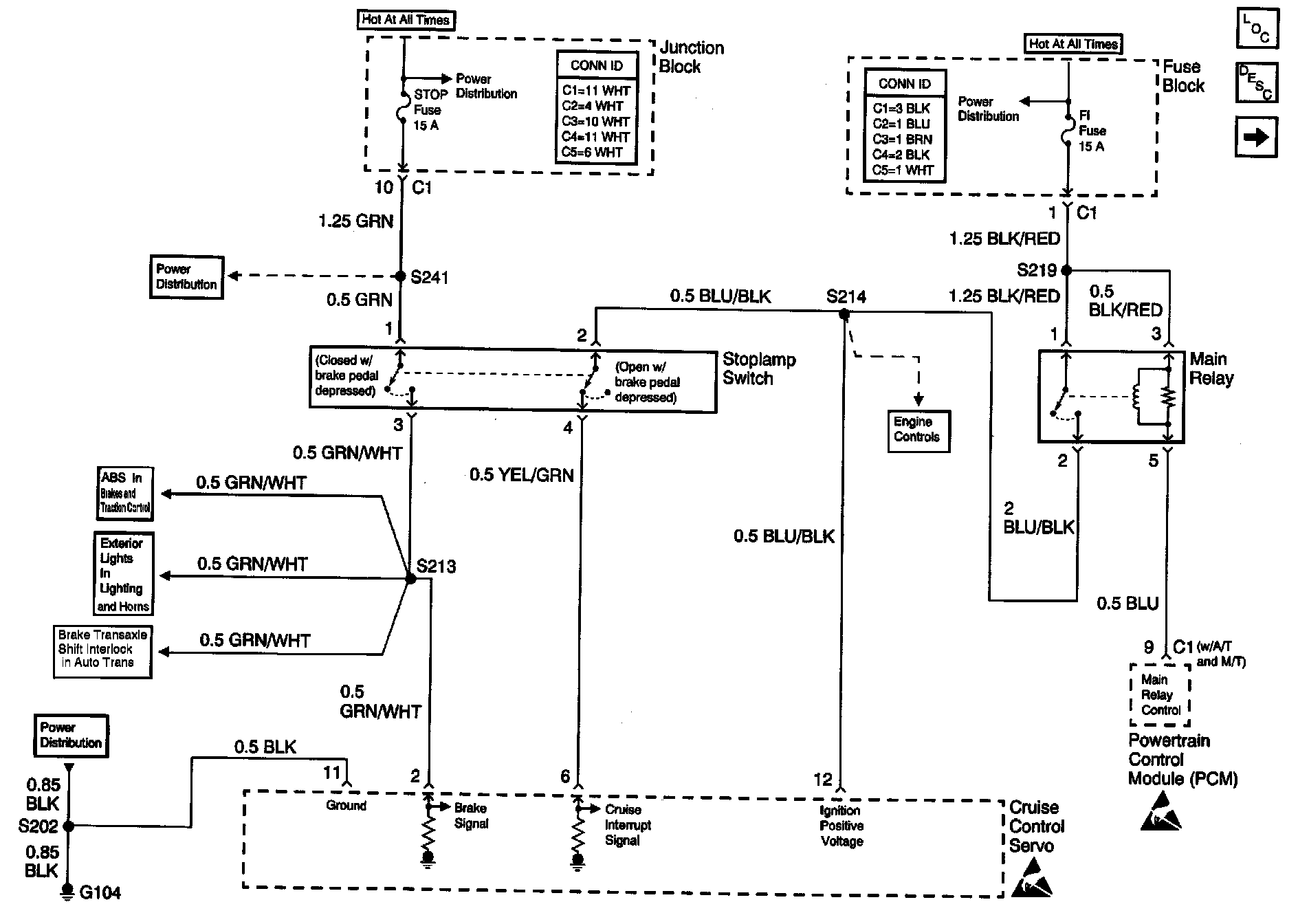

Cruise Control Schematics: Power, Ground And Stoplamp Switch:
