Rear Bumper - Ends Loose at Wheel Openings

File In Section: 08 - Body and Accessories

Bulletin No.: 00-08-62-004

Date: November, 2000

TECHNICAL

Subject:
Rear Bumper Ends Loose at Wheel Openings
(Install New Fasteners)

Models:
1999-2001 Chevrolet Tracker

Condition

Some customers may comment that the ends of the rear bumper at the rear wheelhouse openings are loose. The condition may first appear after the vehicle has been through an automatic car wash.

Cause

The rotating side brushes/cloths of an automatic car wash may pull the ends of the rear bumper away from the body causing the push-in retainers to become loose or break.

Correction

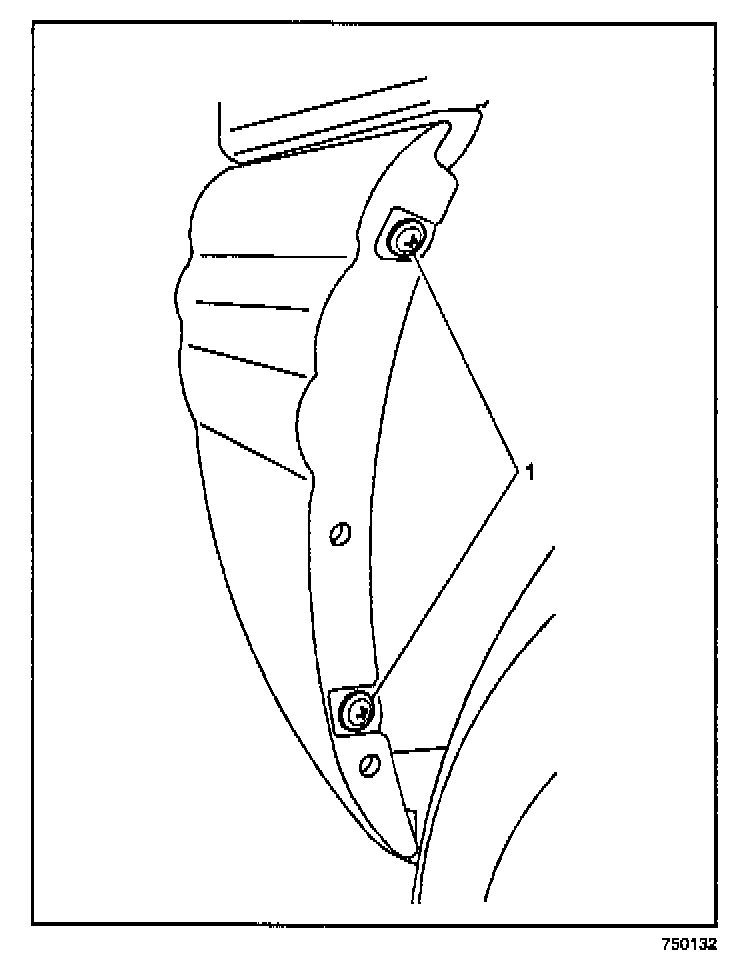

Replace the two plastic push-in retainers on both ends of the rear bumper with screws (1) and nuts (J-clips).

Tighten

Tighten the screws to 3 N-m (27 lb in).

Parts Information

Part Number Description Qty

30014754 Bolt, (Screw) Bumper Upper 4
Fascia
96055263 Nut 4

Parts are currently available from GMSPO.

Warranty Information

For vehicles repaired under warranty, use:

Labor
Labor Operation Description Time

B0598 Cover, One Piece Rear 0.2 hr
Bumper - Align
