Windshield Washer Reservoir: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the windshield washer pump electrical connector (3).

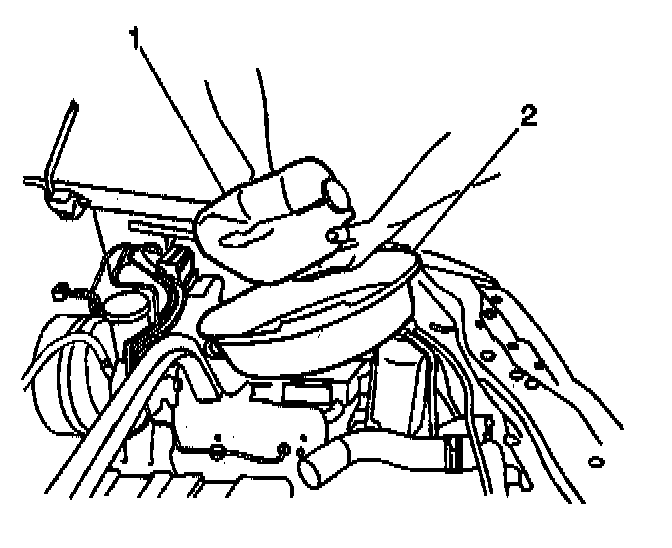

2. Disconnect the rear window washer pump electrical connector (2), if equipped.

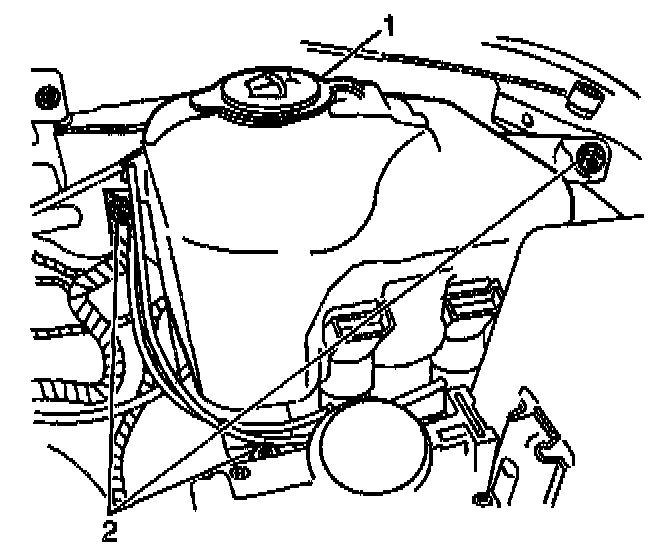

3. Remove the 3 bolts (2) which secure the washer solvent container (1).




4. Drain the washer solvent from the washer solvent container (1) into a clean drain pan (2).

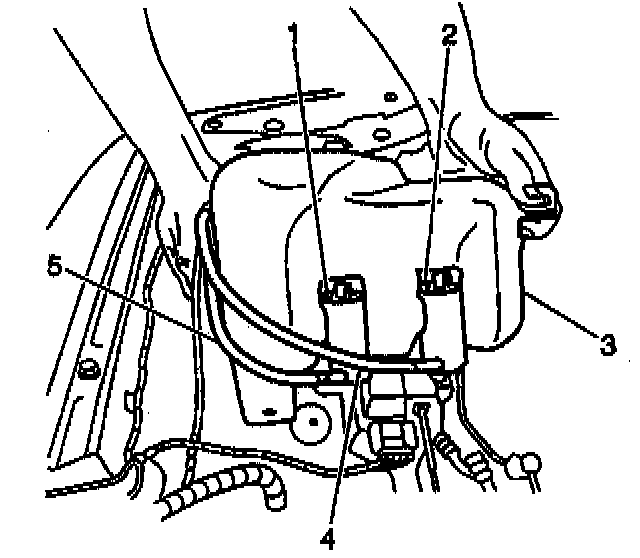

5. Remove the windshield washer nozzle hose (5) from the windshield washer pump (1) and the retainer on the side of the washer solvent container (3).
6. Remove the rear window washer nozzle hose (4) from the rear window washer pump (2) and the retainer on the side of the washer solvent container (3), if equipped.
7. Remove the windshield washer pump (1) from the washer solvent container (3).
8. Remove the rear window washer pump (2) from the washer solvent container (3), if equipped.

INSTALLATION PROCEDURE




1. Install the windshield washer pump (1) to the washer solvent container (3).
2. Install the rear window washer pump (2) to the washer solvent container (3), if equipped.
3. Install the windshield washer nozzle hose (5) to the windshield washer pump (1) and the retainer on the side of the washer solvent container (3).
4. Install the rear window washer nozzle hose (4) to the rear window washer pump (2) and the retainer on the side of the washer solvent container (3), if equipped.

NOTE: Refer to Fastener Notice in Cautions and Notices.




5. Install the washer solvent container (1) to the vehicle. Secure the container with 3 bolts (2).

Tighten
Tighten the washer solvent container bolts to 13 N.m (115 lb in).




6. Connect the windshield washer pump electrical connector (2), if equipped.
7. Connect the rear window washer pump electrical connector (2), if equipped.
8. Refill the washer solvent container with washer solvent, as necessary.
