Antilock Brakes / Traction Control Systems
>>
Brake Fluid Level Switch, Brake Indicator, & Stoplamp Switch
Brake Fluid Level Switch, Brake Indicator, & Stoplamp Switch

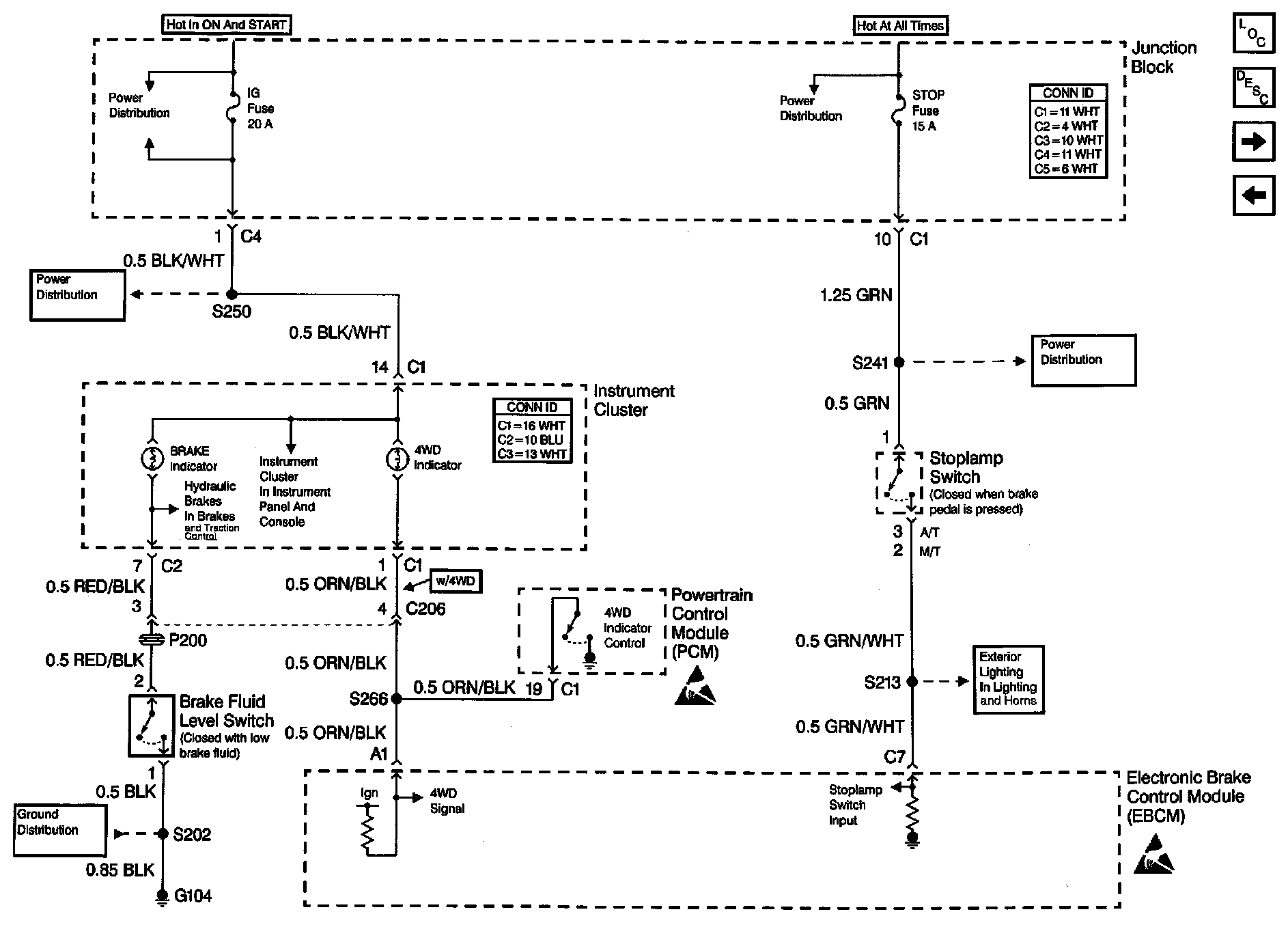

ABS Schematics: Brake Fluid Level Switch, Brake Indicator, And Stoplamp Switch:
