Primary Air Delivery Controls - Mode and Air Temperatures Actuators (Base)

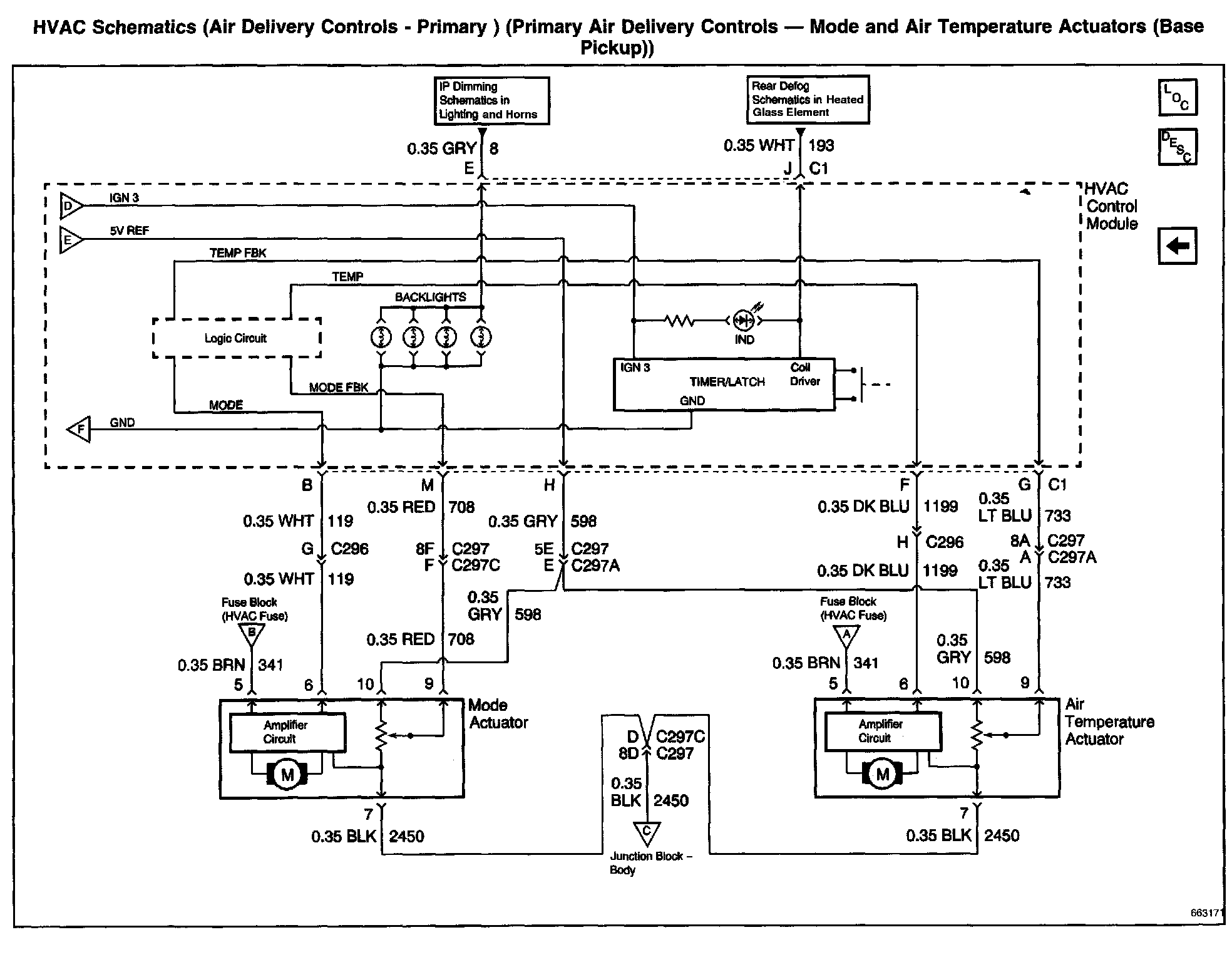

HVAC Schematics: Air Delivery Controls - Primary (Primary Air Delivery Controls - Mode And Air Temperature Actuators (Base Pickup)):
