Windshield Washer Pump: Service and Repair

REMOVAL PROCEDURE




1. Remove the washer solvent container. Refer to Washer Pump/Reservoir Replacement.

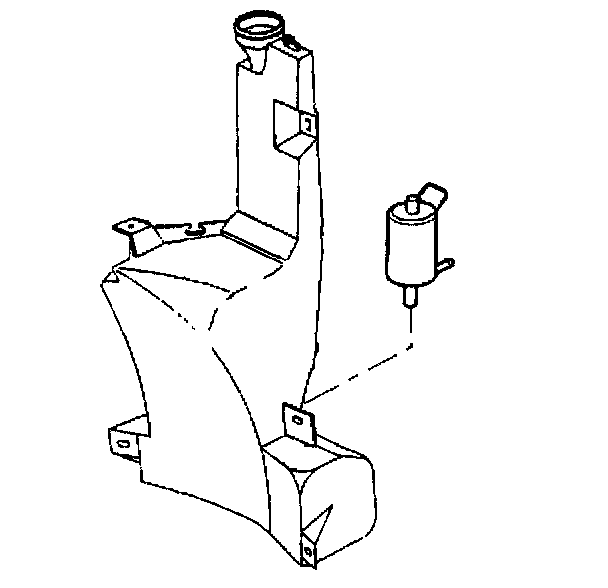

2. Remove the washer pump(s) from the reservoir.

INSTALLATION PROCEDURE




1. Install the washer pump(s) into the reservoir.
2. Install the washer solvent container. Refer to Washer Pump/Reservoir Replacement.
