C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Door Lock and Window Switch - Driver - C2
Door Lock and Window Switch - Driver - C2

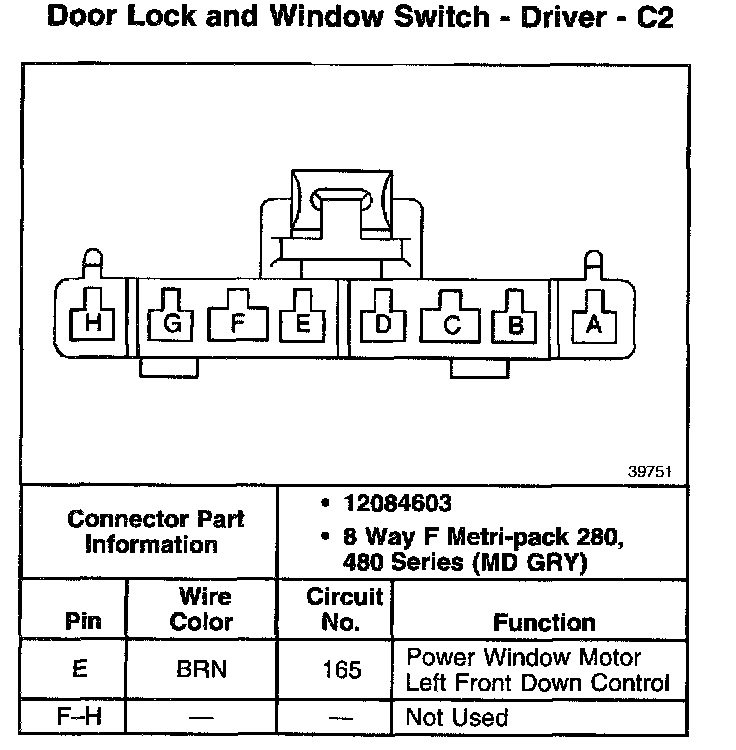

Door Lock And Window Switch - Driver - C2 (Part 1 Of 2):
Door Lock And Window Switch - Driver - C2 (Part 2 Of 2):
