Connector Views
>>
Power Seat Switch
>>
Seat Lumbar SW - Driver (W/O PWR), Front Passenger (Bucket Seats)
Seat Lumbar SW - Driver (W/O PWR), Front Passenger (Bucket Seats)

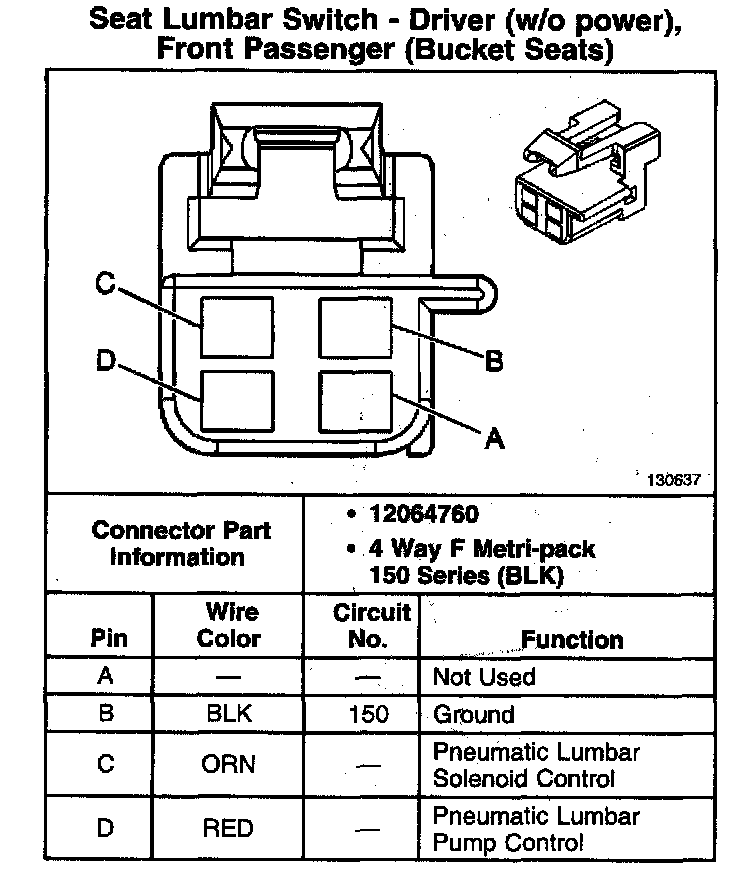

Seat Lumbar Switch - Driver (W/O Power), Front Passenger (Bucket Seats):
