EBCM Stoplamp Switch And Wheel Speed Inputs

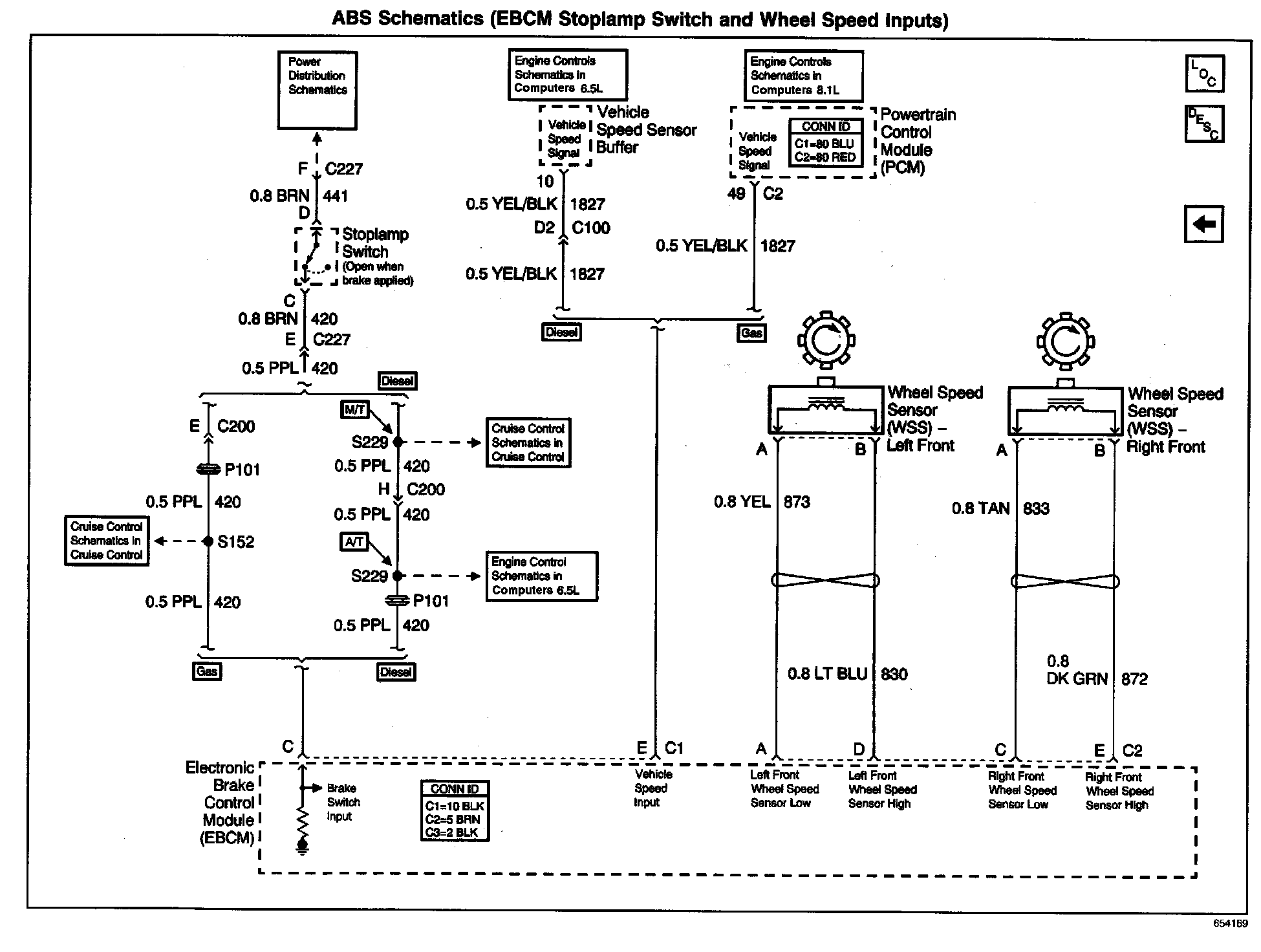

ABS Schematics: EBCM Stoplamp Switch And Wheel Speed Inputs:
