Instrument Panel, Gauges and Warning Indicators
>>
Description and Operation
>>
Indicators
>>
General Information
General Information
The indicator description and operation uses generic indicator names. Refer to the below for the indicators that are available on this vehicle:

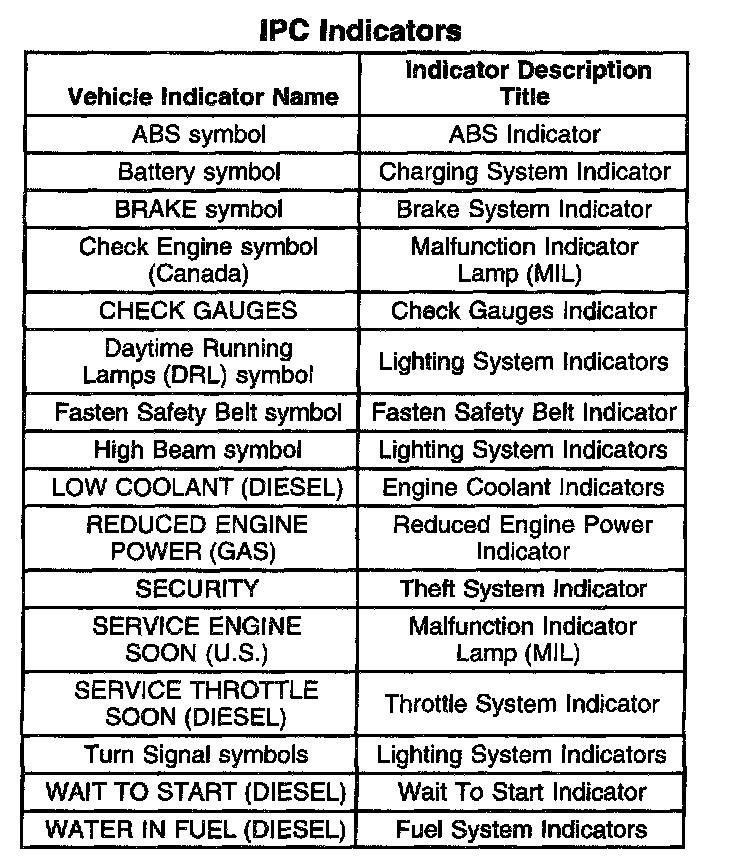

IPC Indicators:
IPC Indicators
