Power Door Systems Component Views

Rear of Instrument Panel, Top View




1 - Tractor Marker Lamps Relay or Column Shift Relay (LG5)/Transmission Park Column Switch Relay (L18)
2 - Lighting Relay
3 - Ignition 3 Relay
4 - Power Window Relay-L18/Late LG5
5 - Horn Relay
6 - Convenience Center
7 - Power Window Relay-Early LG5
8 - Blower Relay 2
9 - Blower Relay 1
10 - Accessory Relay
11 - Daytime Running Lamps (DRL) Control Module
12 - Fuel Pump Relay (L18)/Fuel Heater Relay (LG5)
13 - Daytime Running Lamps Relay
14 - Daytime Running Lamps (DRL) Diode
15 - Auxiliary Wiring Relay

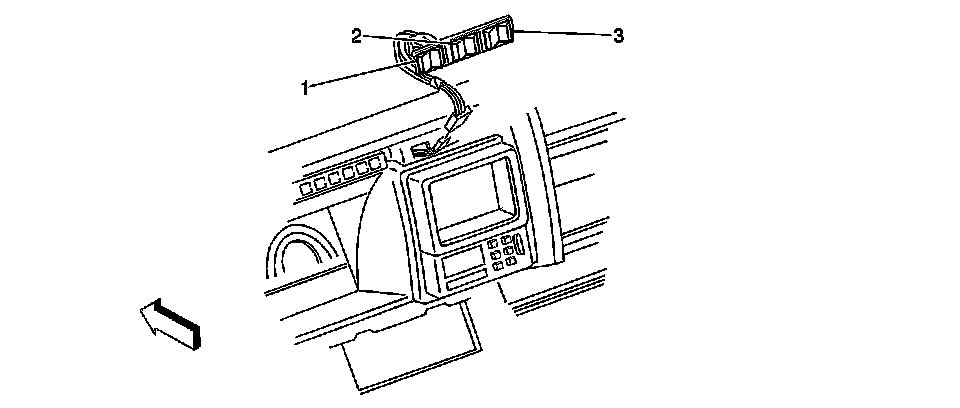

Instrument Panel, Left View




1 - Trailer Marker Lamp Switch
2 - Outside Heated Mirror Switch
3 - Exhaust Brake Switch

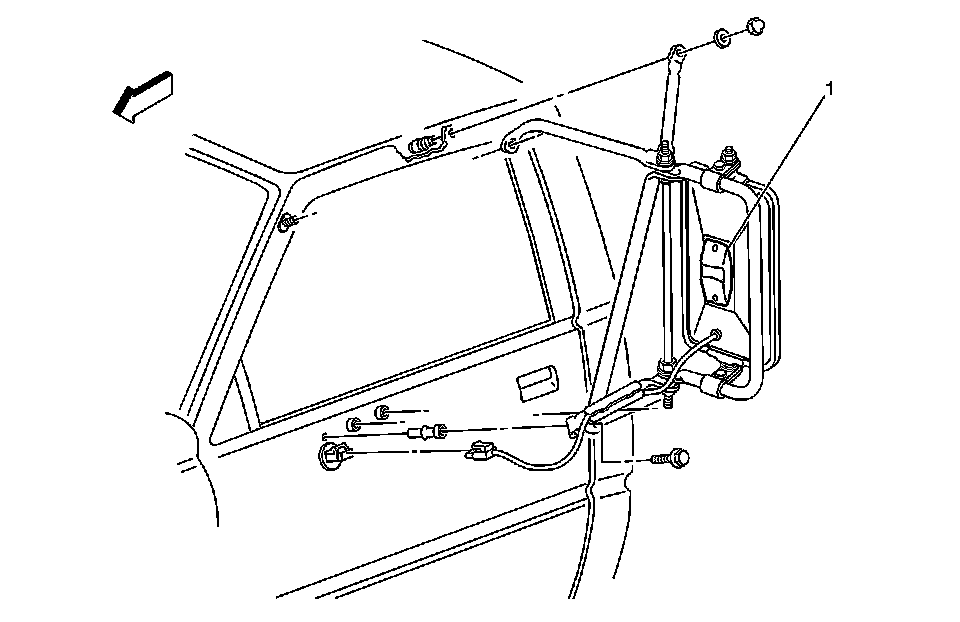

Outside Rearview Mirror-Typical




1 - Outside Rearview Mirror - Driver
