Cruise Control Schematics (L18)

Cruise Control Schematics (L18)

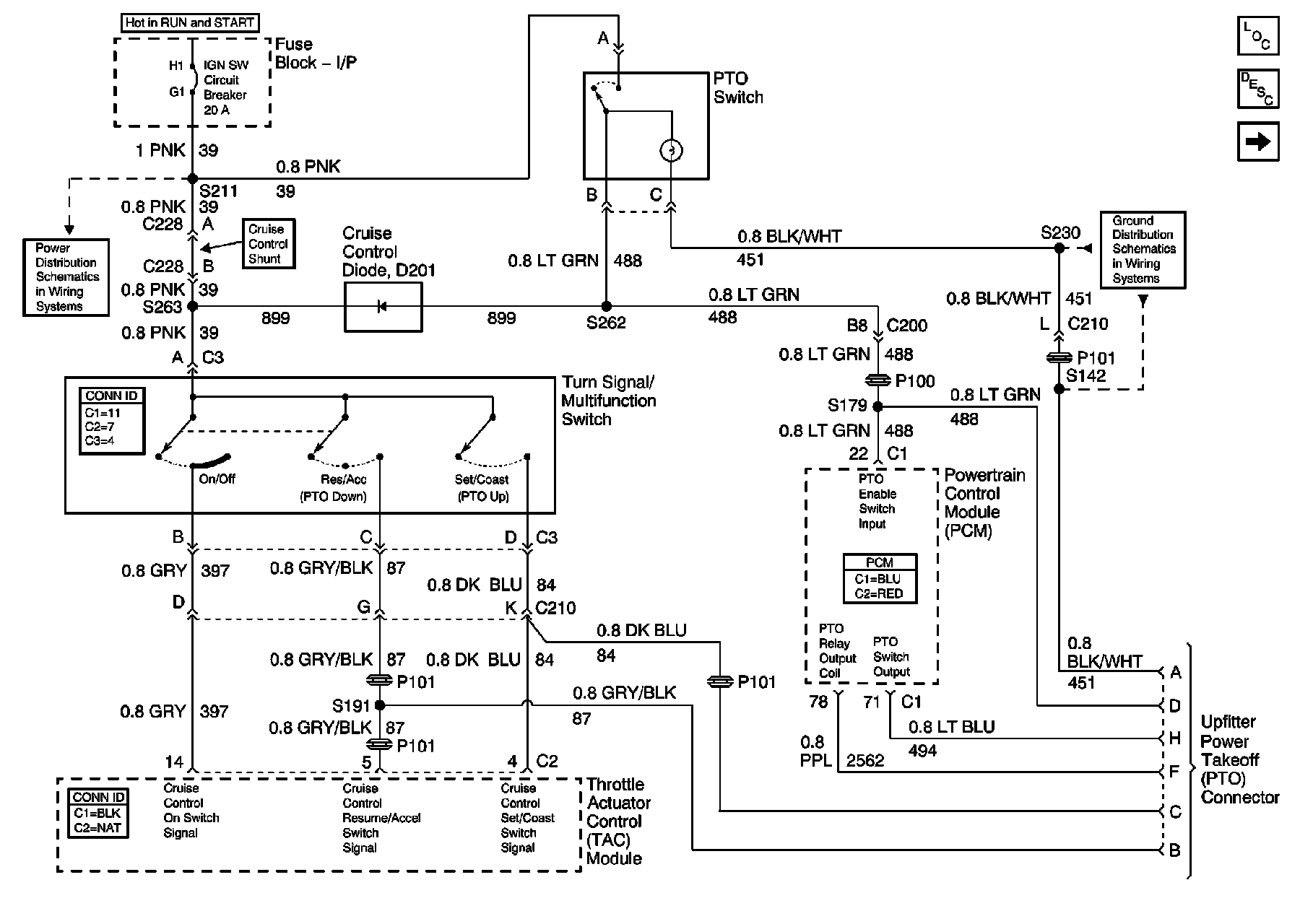

Cruise Control Enable

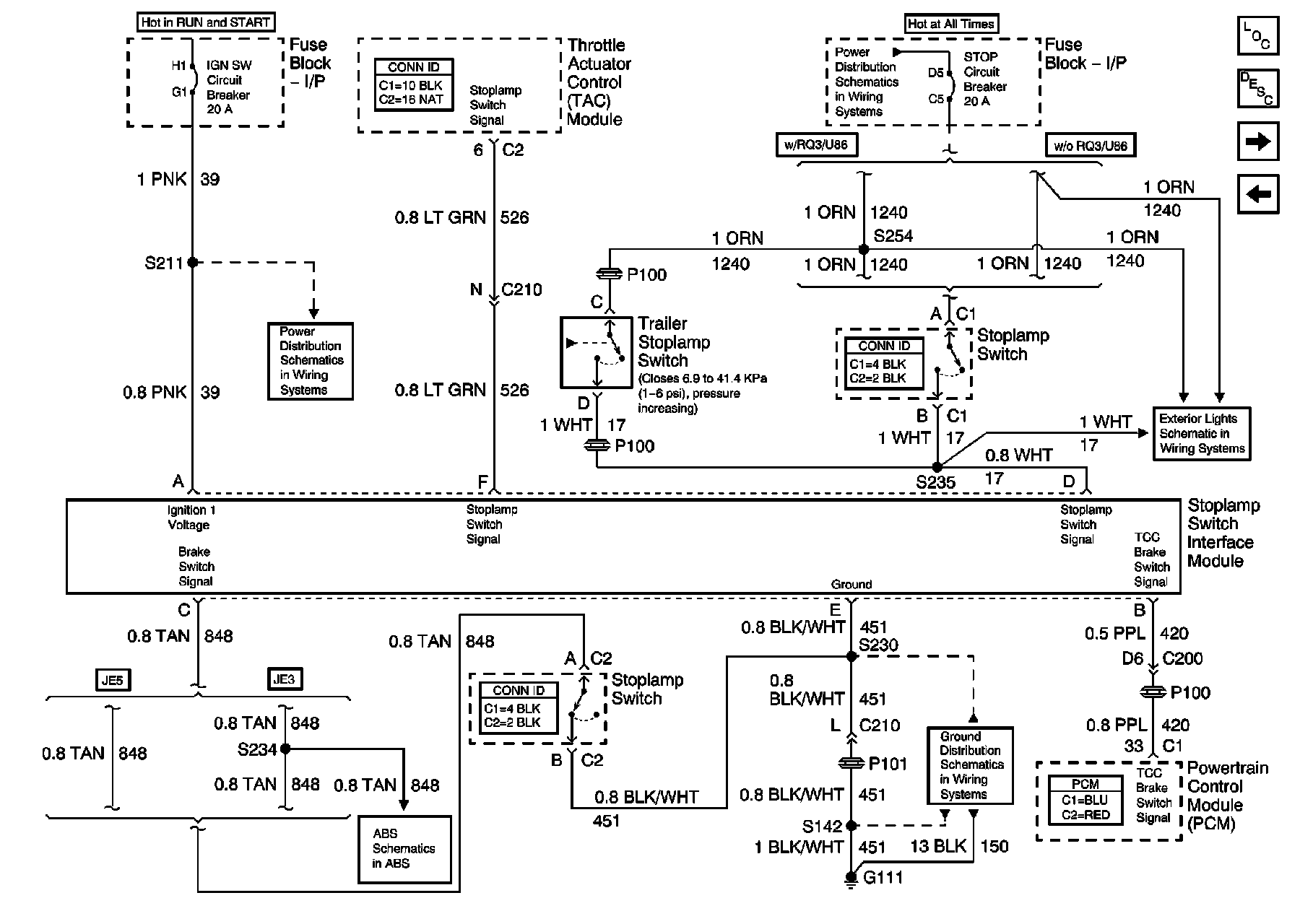

Stoplamp Switch Interface

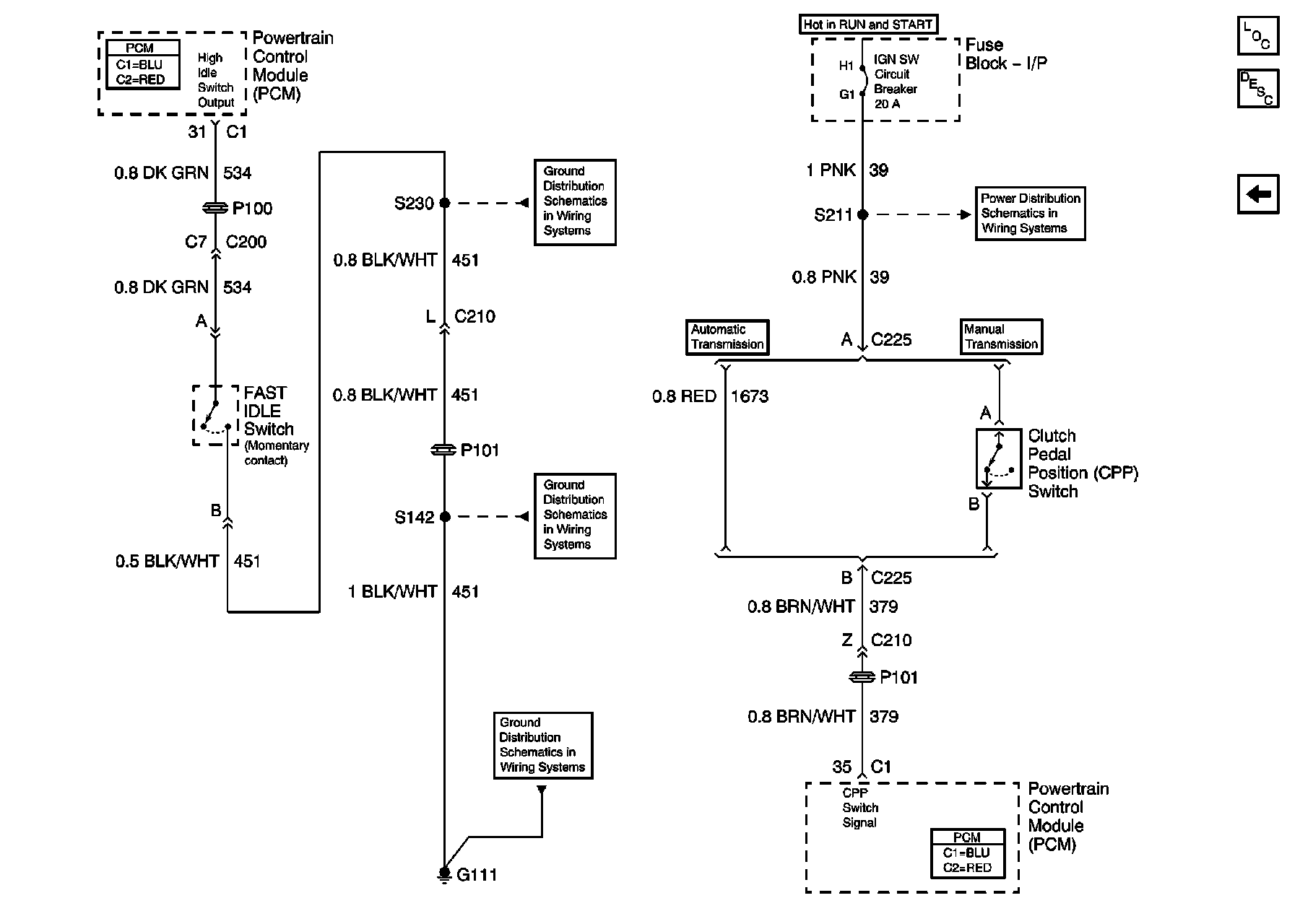

Clutch Pedal Position, Fast Idle
