Engine Exhaust Brake Schematics

Engine Exhaust Brake Schematics

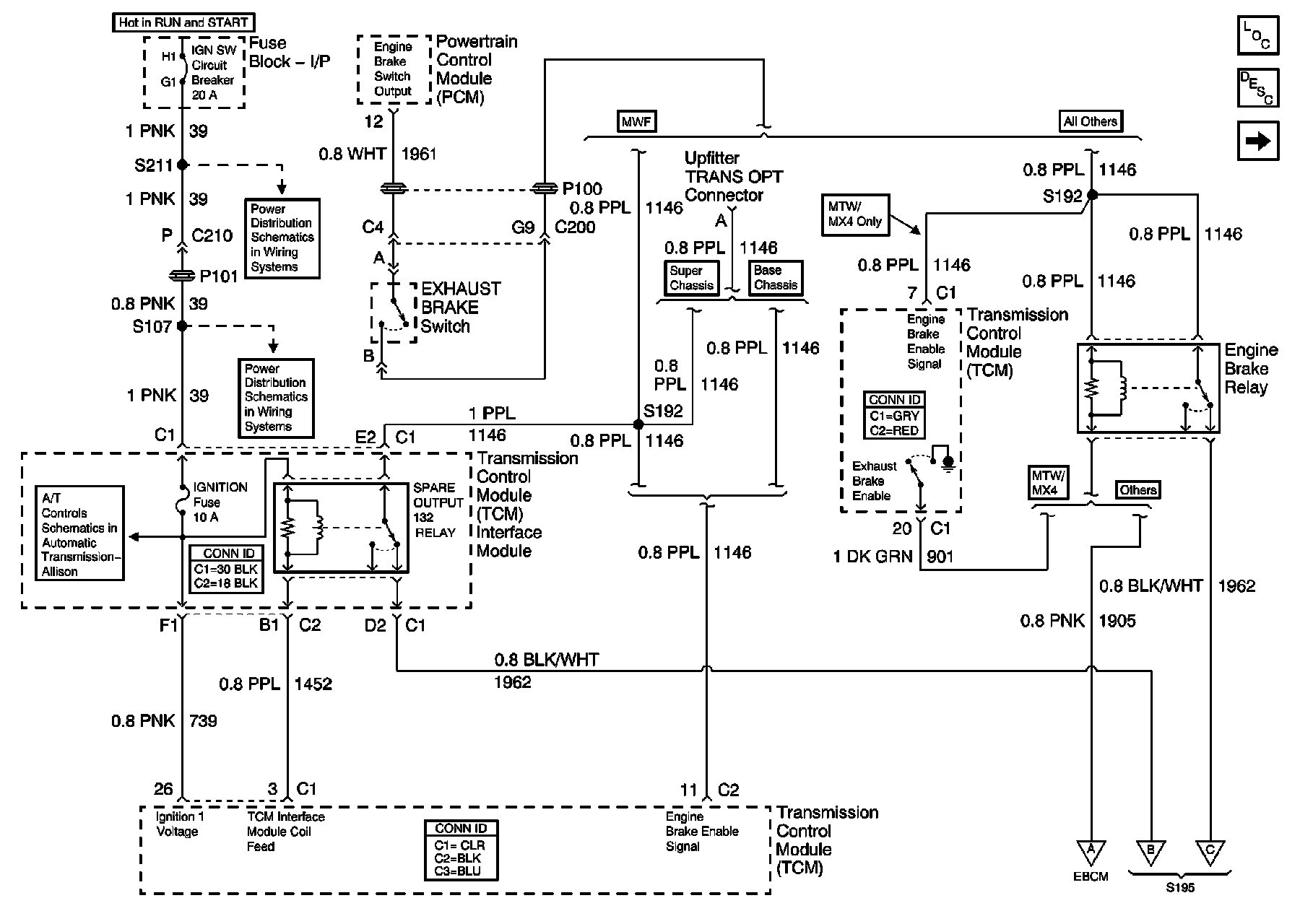

Engine Brake Relay and TCM Interface

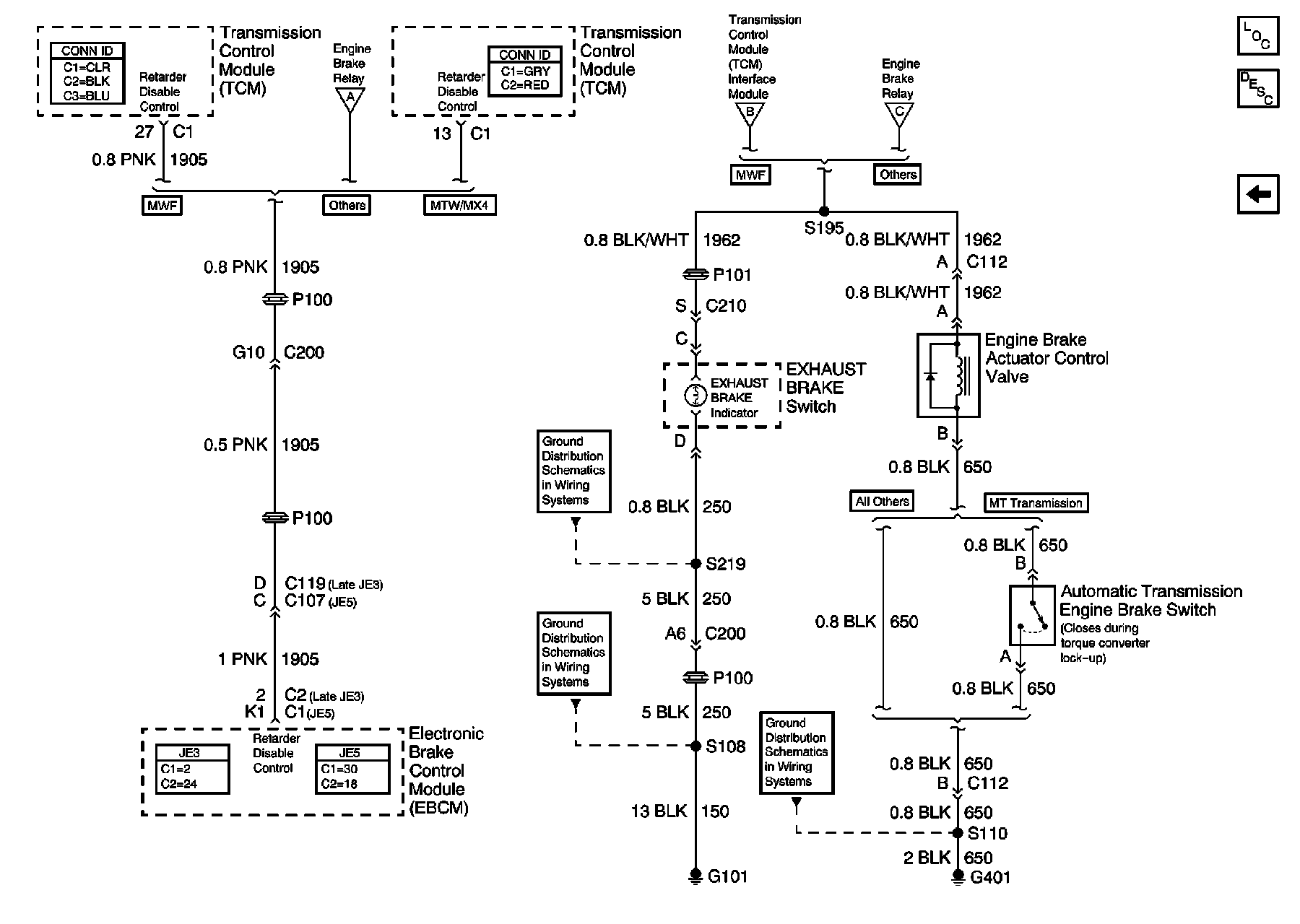

Engine Brake Enable, Indicator and Valve
