Engine Hour Meter Replacement

Engine Hour Meter Replacement

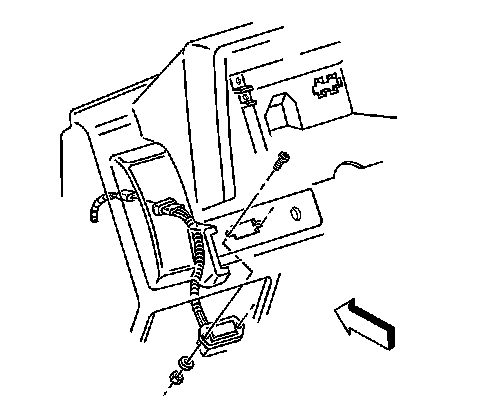

Removal Procedure




1. Disconnect the wiring harness from the hourmeter.
2. Remove the 2 nuts from the back of the hourmeter.
3. Remove the screws.
4. Move the hourmeter rearward in order to remove the hourmeter from the bracket.

Installation Procedure




1. Install the hourmeter to the bracket
2. Install the screws.
3. Install the 2 nuts to the back of the hourmeter.
4. Connect the wiring harness to the hourmeter.
