Exterior Lights Schematics




Exterior Lights Schematics

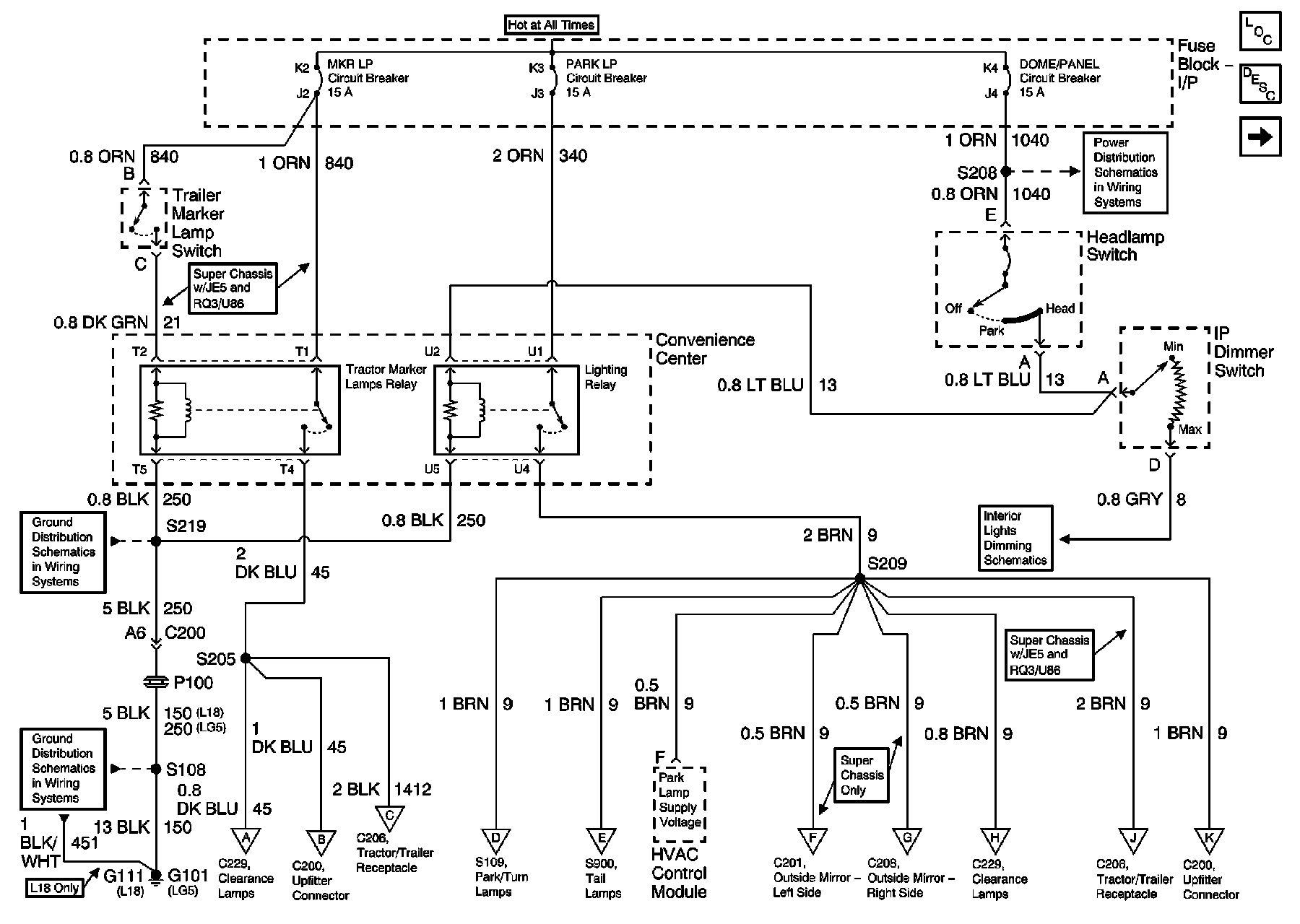

Circuit Power, Relays

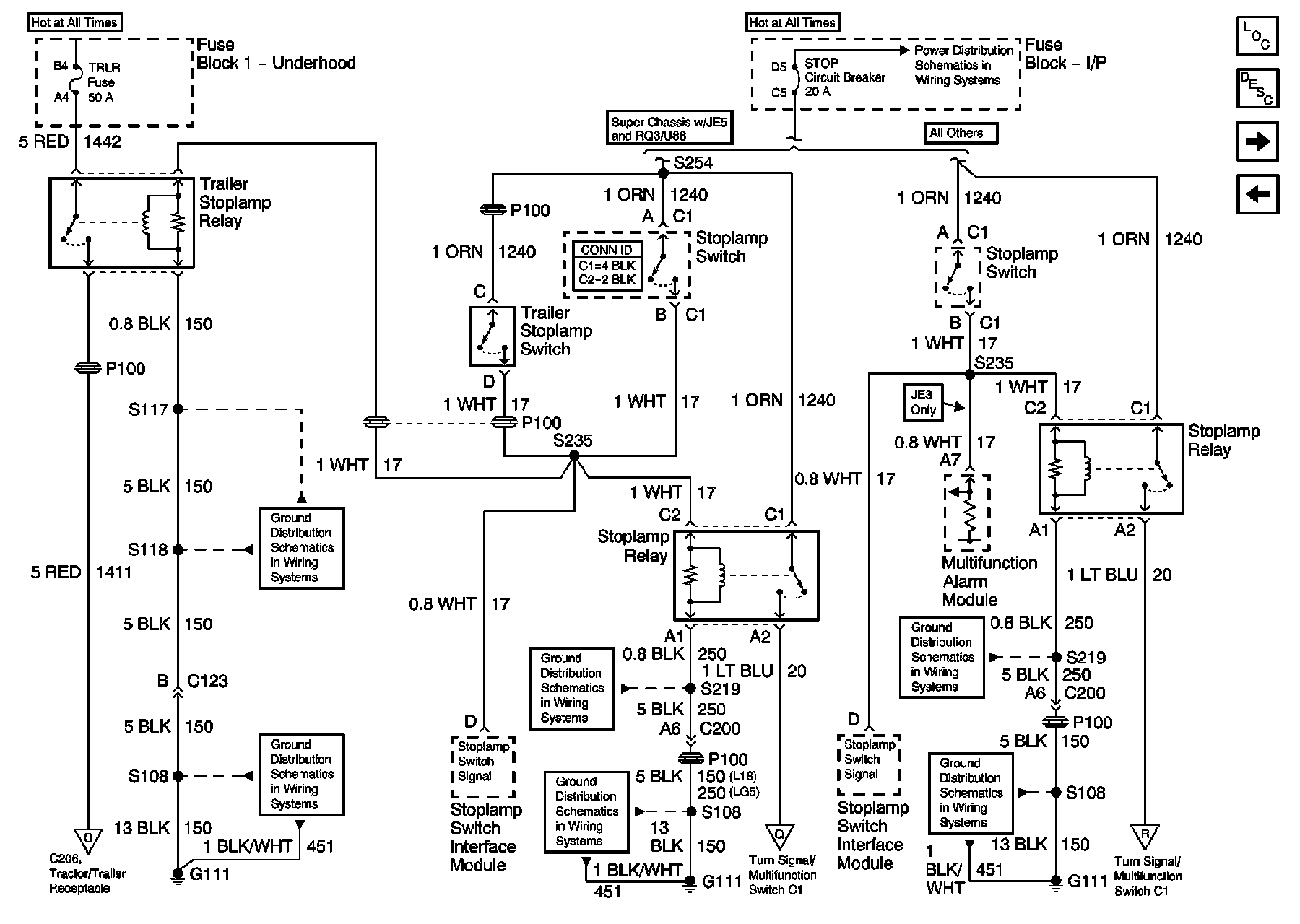

Stoplamp Relays, Trailer Stoplamp Relay (L18)





Stoplamp Relays, Trailer Stoplamp Relay (LG5)

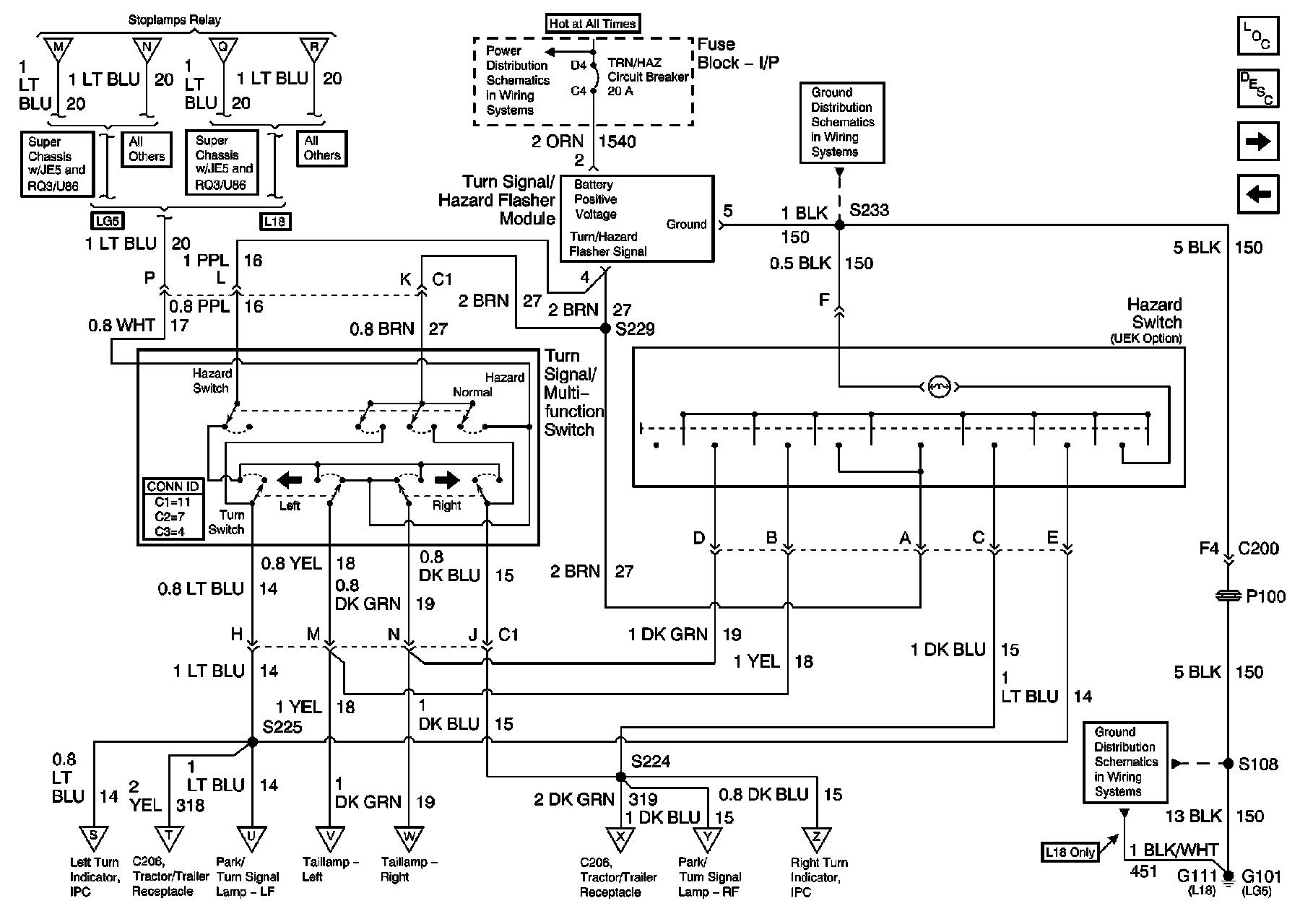

Turn Signal Switch, Hazard Switch





Park/Turn Signal Lamps, Taillamps, IPC Indicators

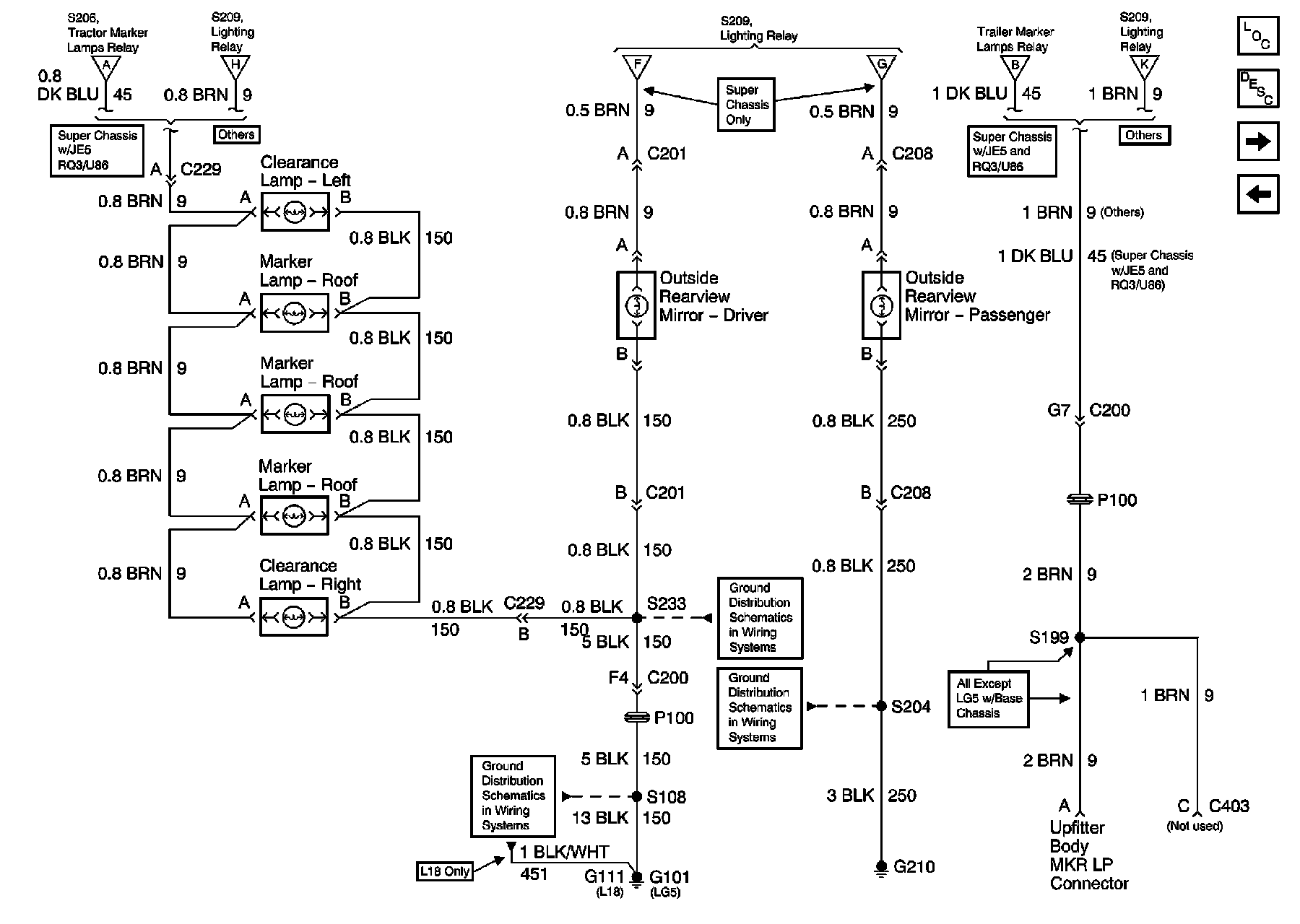

Clearance and Roof Marker Lamps, Outside Rearview Mirrors, Upfitter Provisions

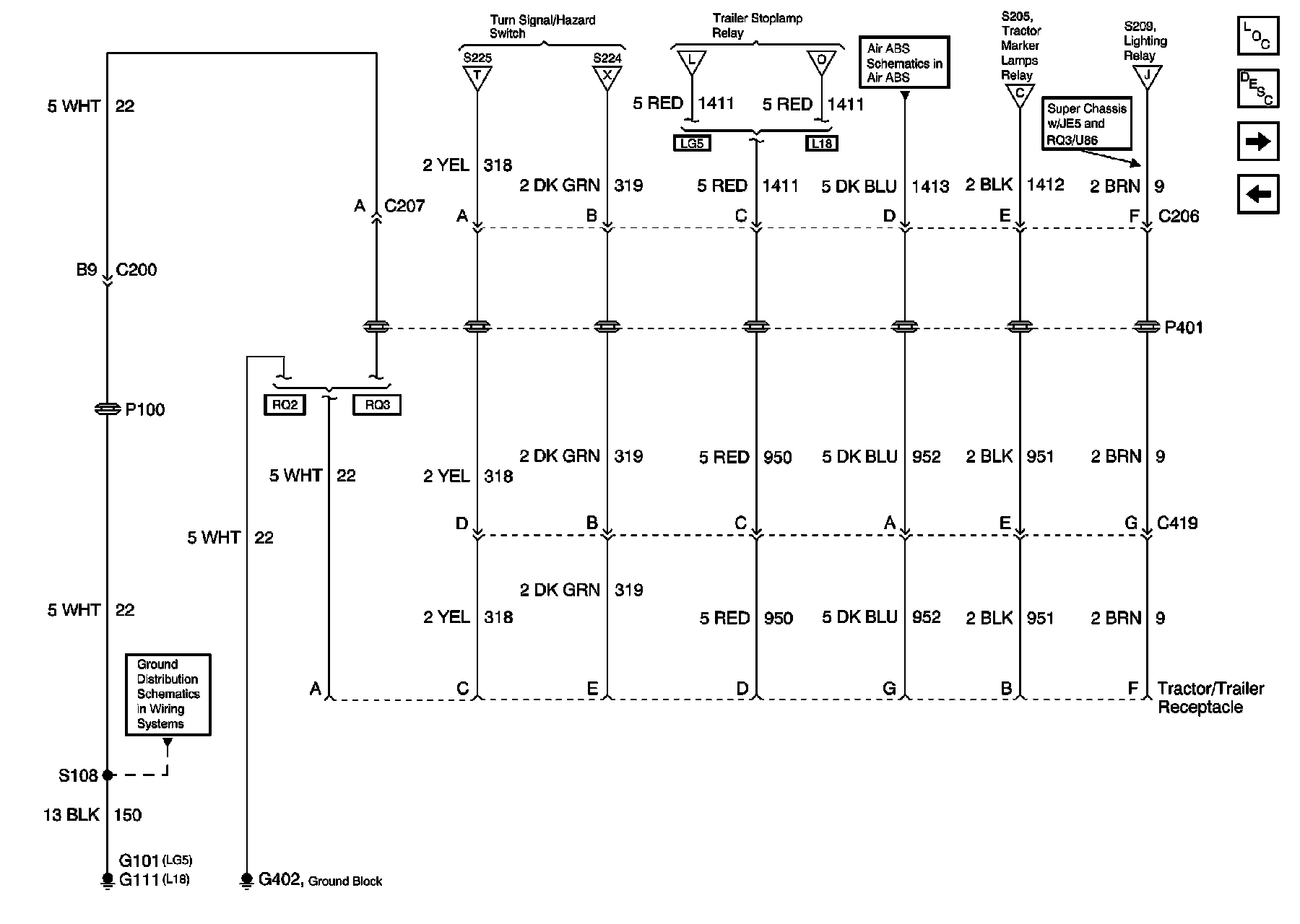

Trailer Lighting

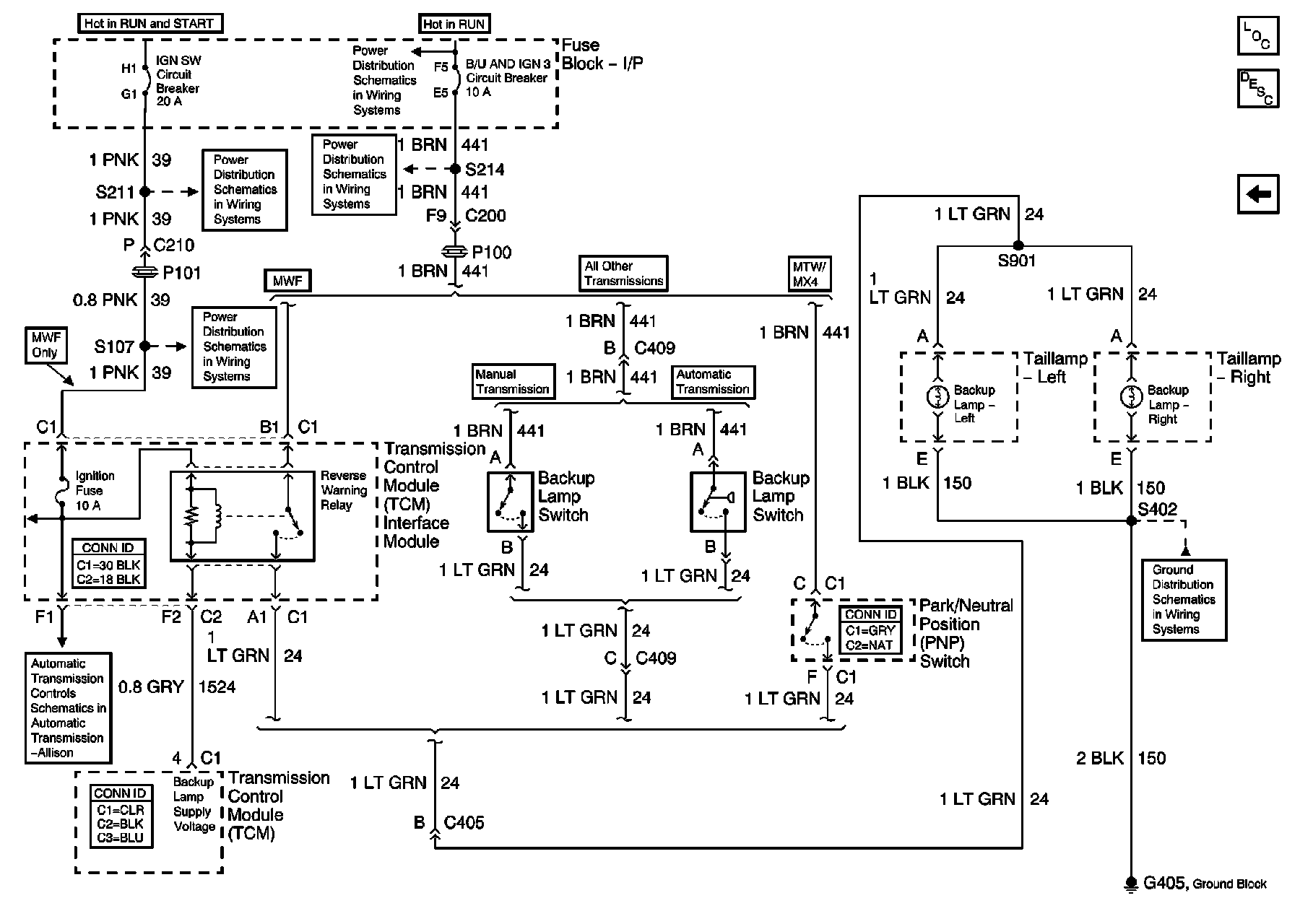

Backup Lights
