Parking and Turn Signal Lamp Replacement (Turn off)

Parking and Turn Signal Lamp Replacement (Turn off)

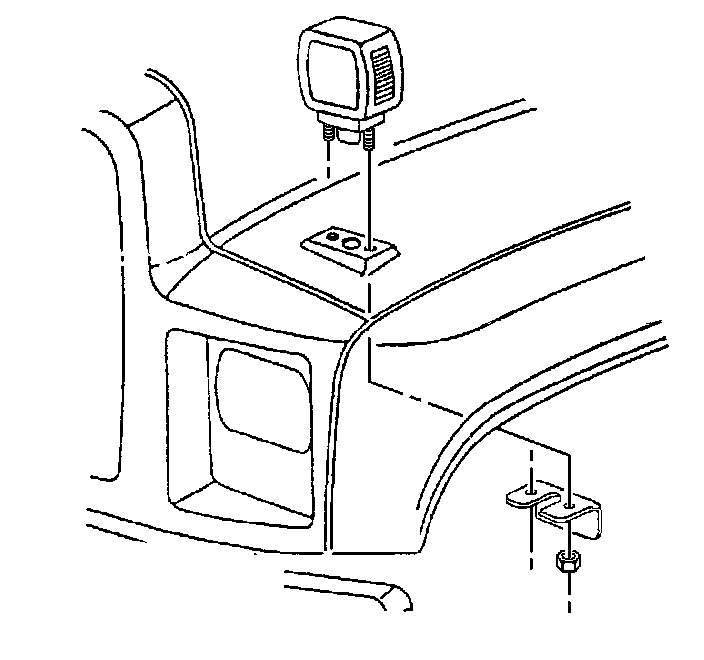

Removal Procedure

Caution: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Disconnect the electrical connector.




3. Remove the 2 nuts and the backing plate.
4. Remove the park/turn signal lamp housing.

Installation Procedure




1. Install the park/turn signal lamp housing.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the backing plate and the two retaining nuts.

Tighten the retaining nuts to 8 Nm (71 lb in).

3. Connect the electrical connector.
4. Connect the negative battery cable.
