Transmission Controls Schematics (MWF Only)




Automatic Transmission Controls Schematics (MWF Only)

TCM Interface Module Relays, Indicators





Starter Enable

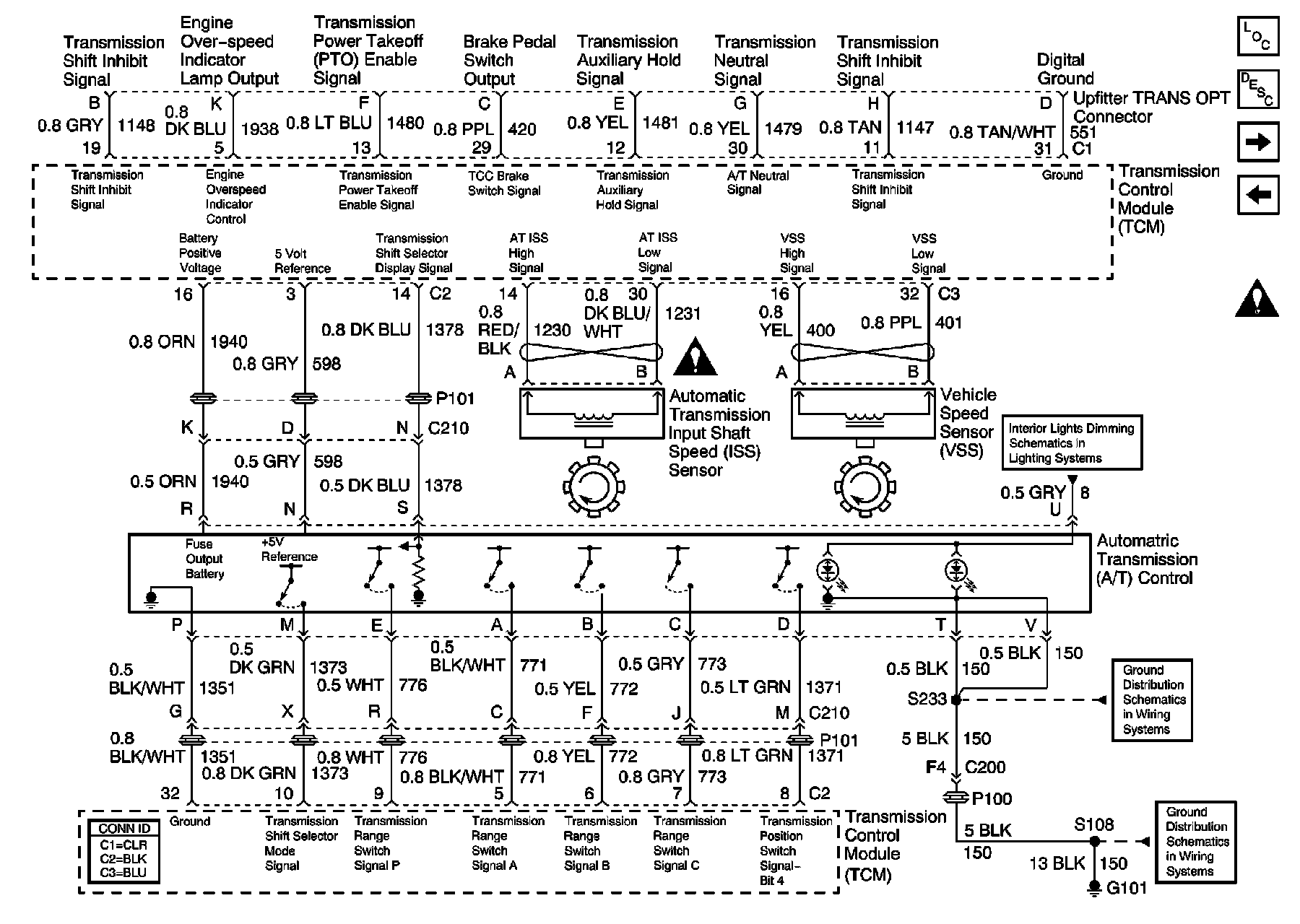

Automatic Transmission Control and TCM

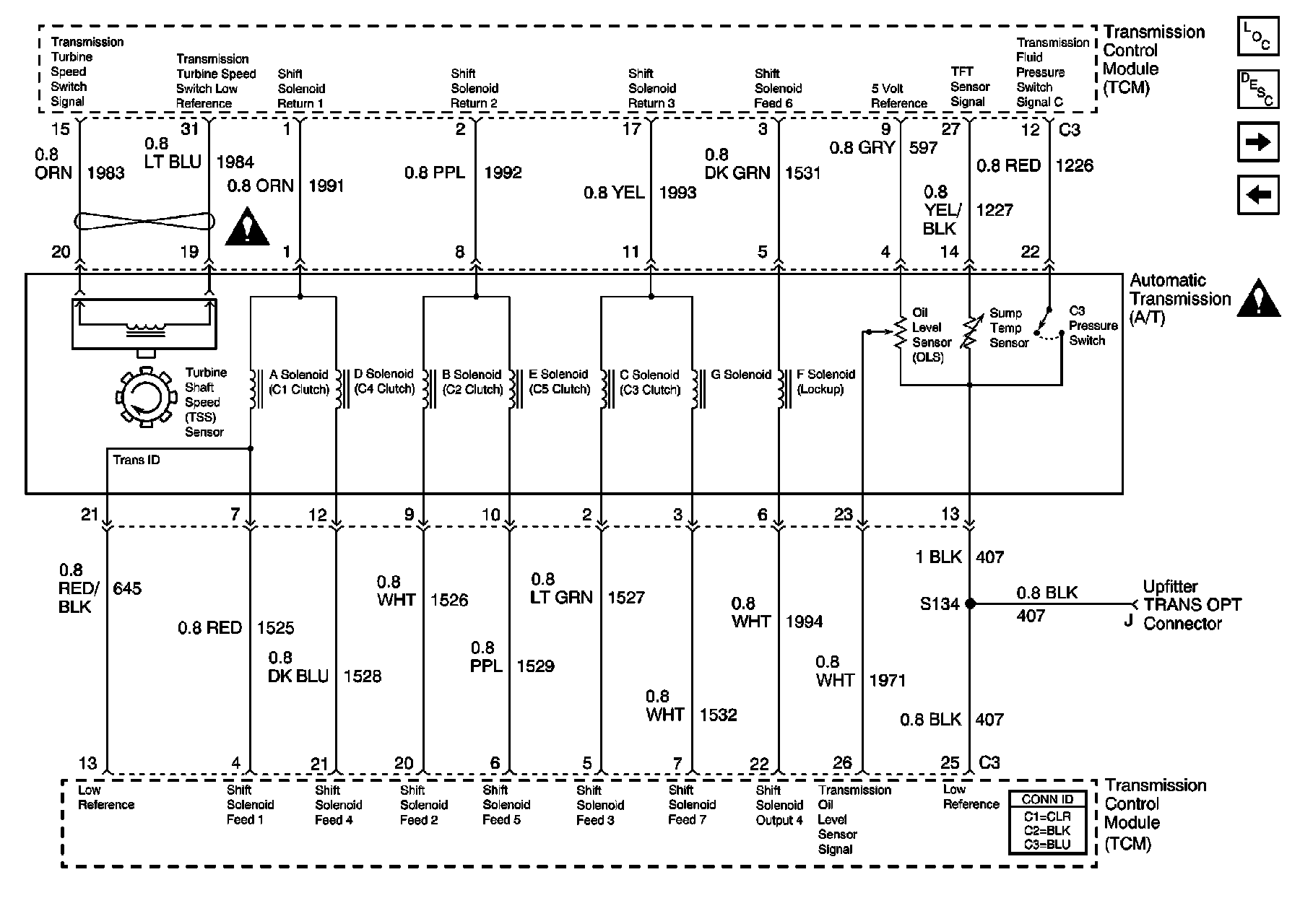

Automatic Transmission Solenoids and TCM





DLC
