Seat Belt Systems: Locations

Seat Belt Component Views

IP Harness to Components, Right View




1 - Stop Lamp Switch Interface Module
2 - Convenience Center
3 - SERVICE TRANS FILTER Indicator Lamp
4 - Seat Belt Indicator Lamp
5 - Upfitter Accessory Feed Connector
6 - C210
7 - Upfitter AUX WRG Connector, Interior
8 - Daytime Running Lamps (DRL) Diode
9 - Blower Motor C1
10 - Blower Motor C2
11 - C208
12 - G210
13 - Speaker - RF

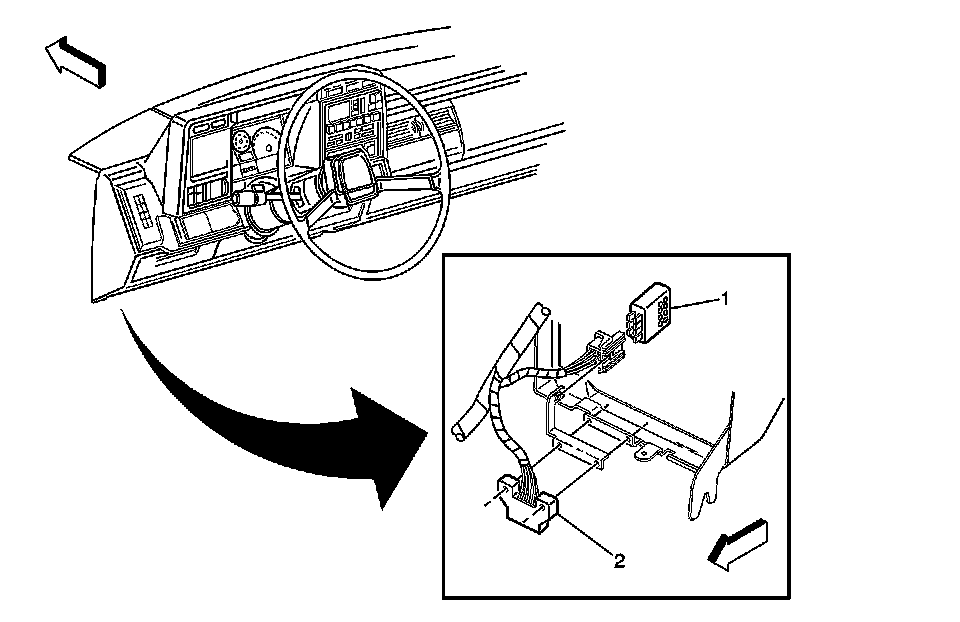

Instrument Panel, Front View




1 - Seat Belt Alarm
2 - Data Link Connector (DLC)
