Starting and Charging Schematics (LG5)




Starting and Charging Schematics (LG5)

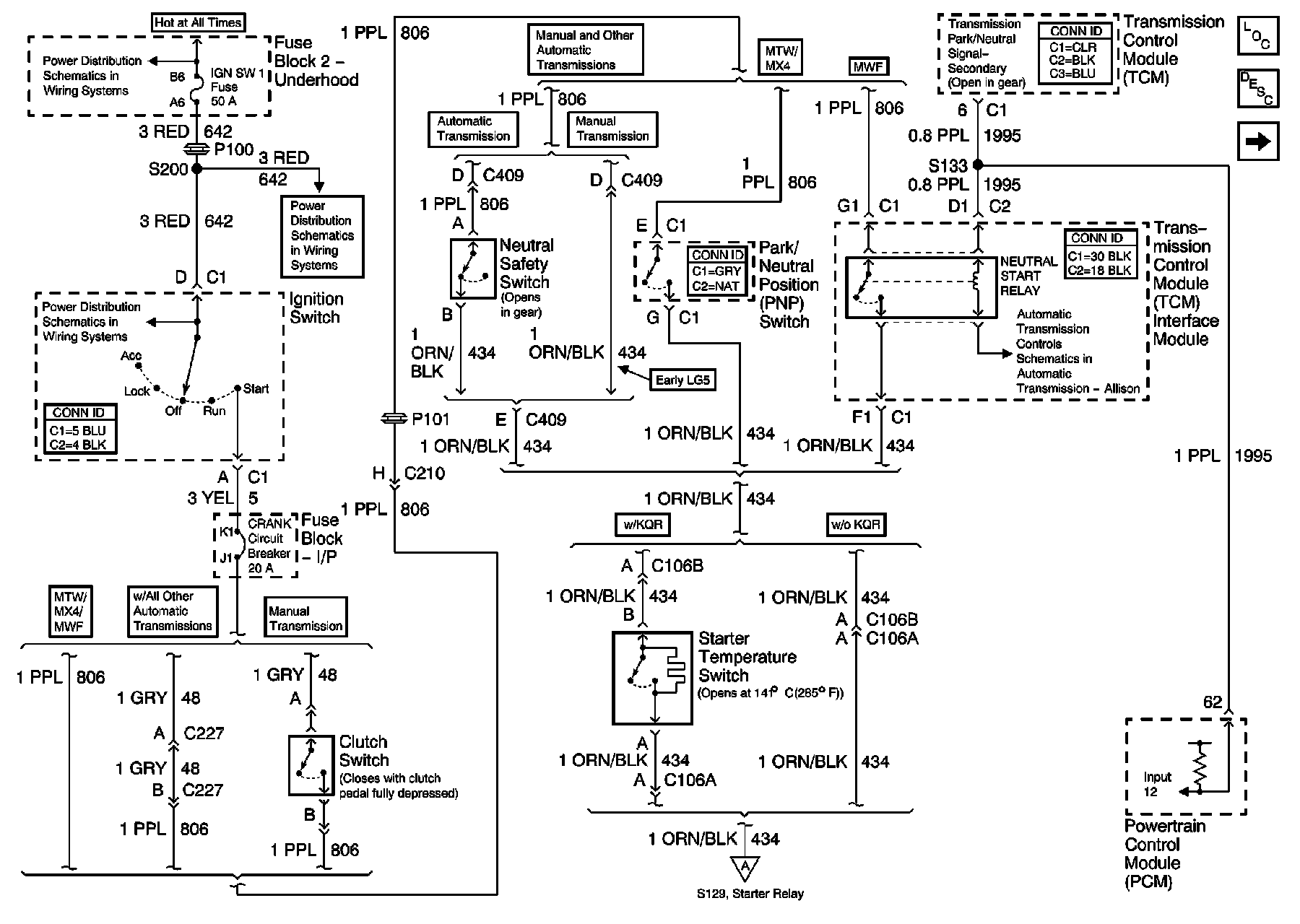

Starting Circuit (1 of 2)

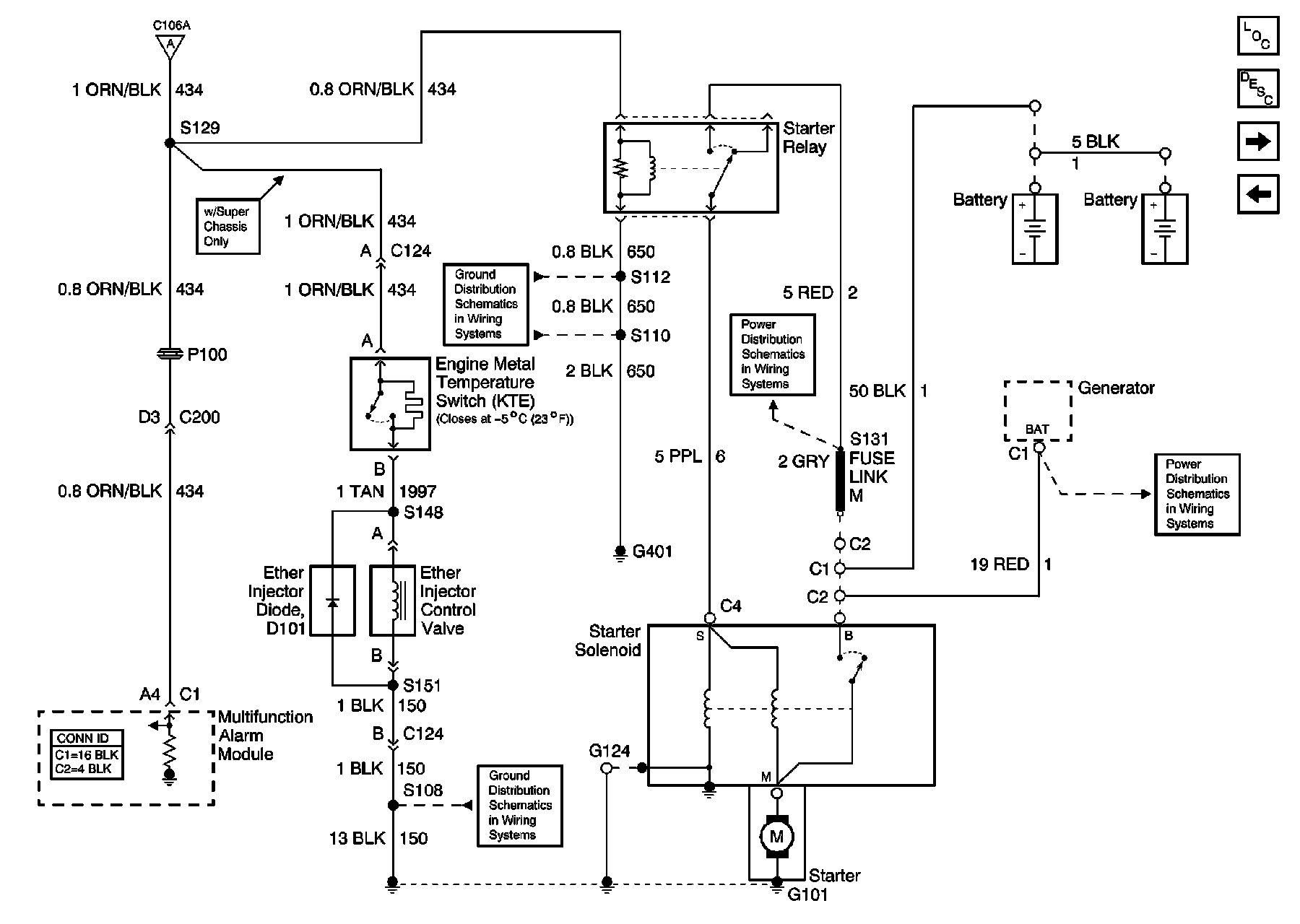

Starting Circuit (2 of 2)





Charging Circuit
