Chevy Truck
>>
2001
>>
C 6500 Kodiak V8-8.1L VIN E
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Diagrams
>>
Connector Views
Connector Views

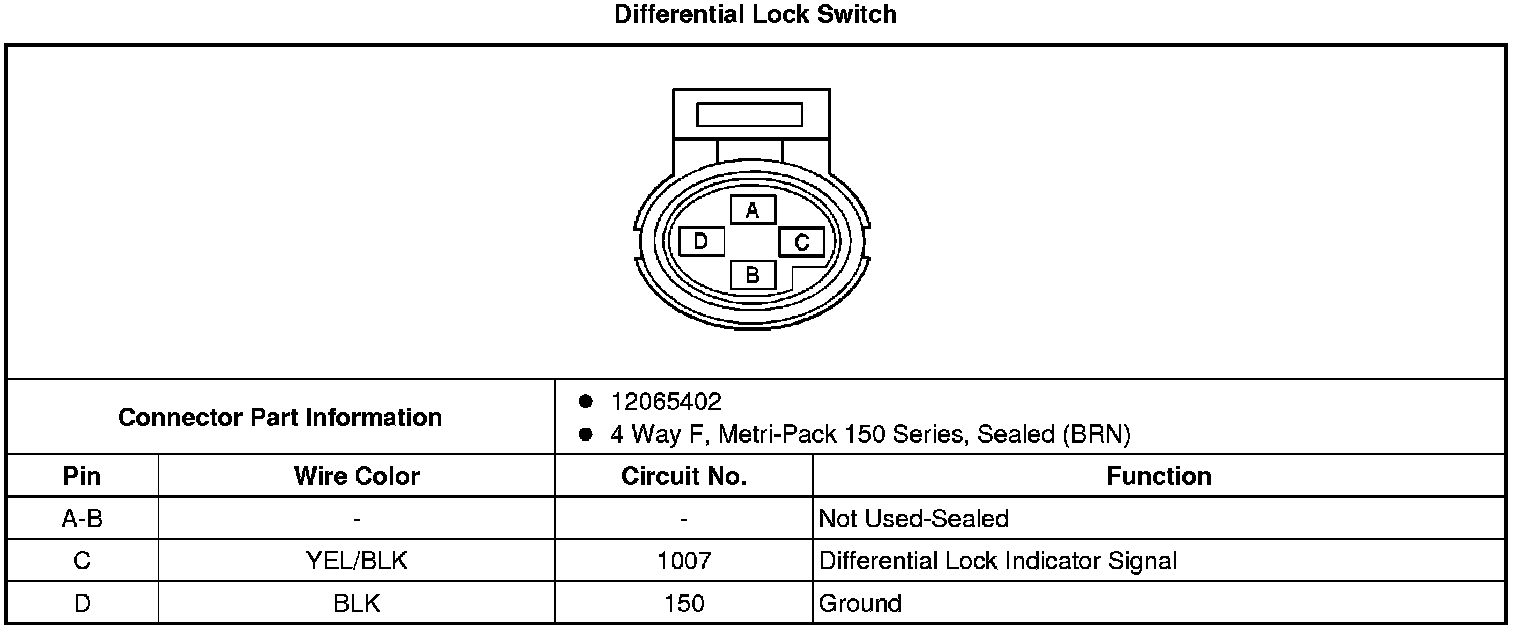

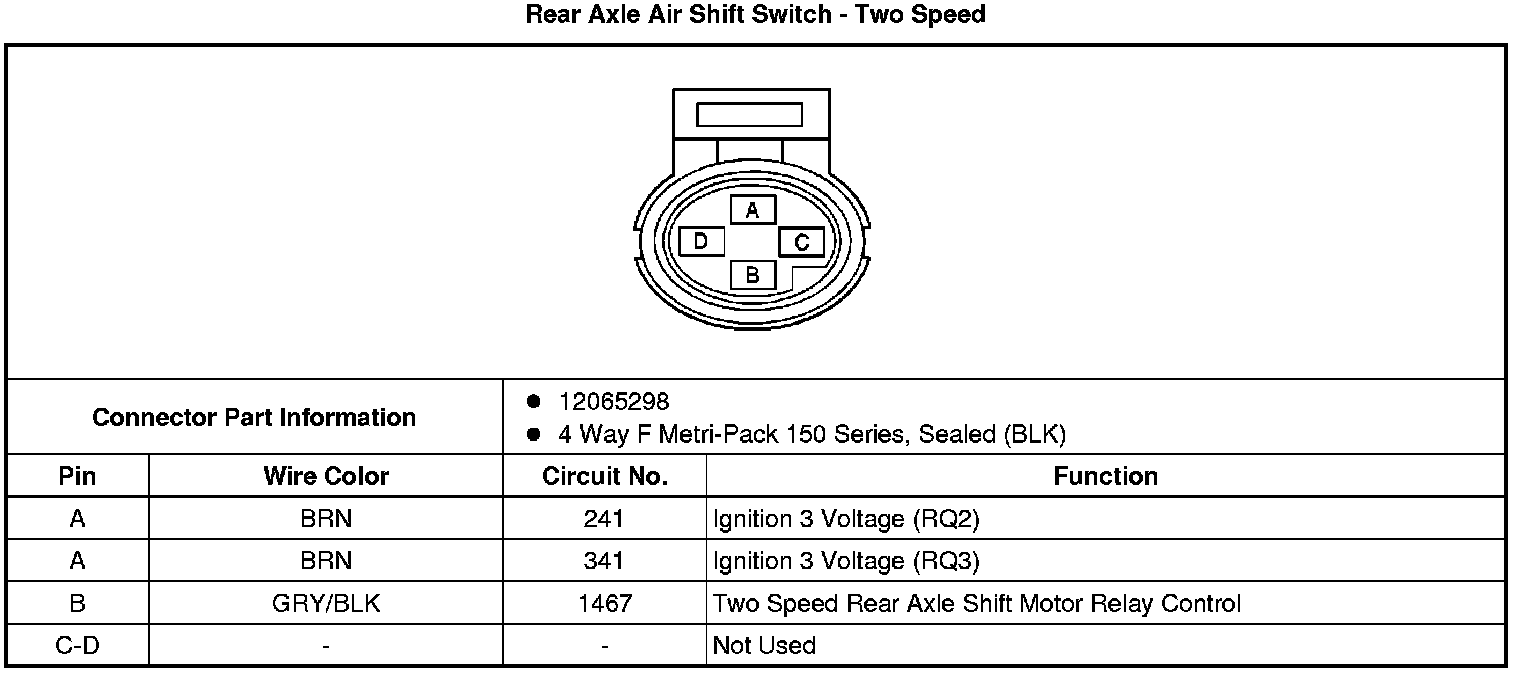

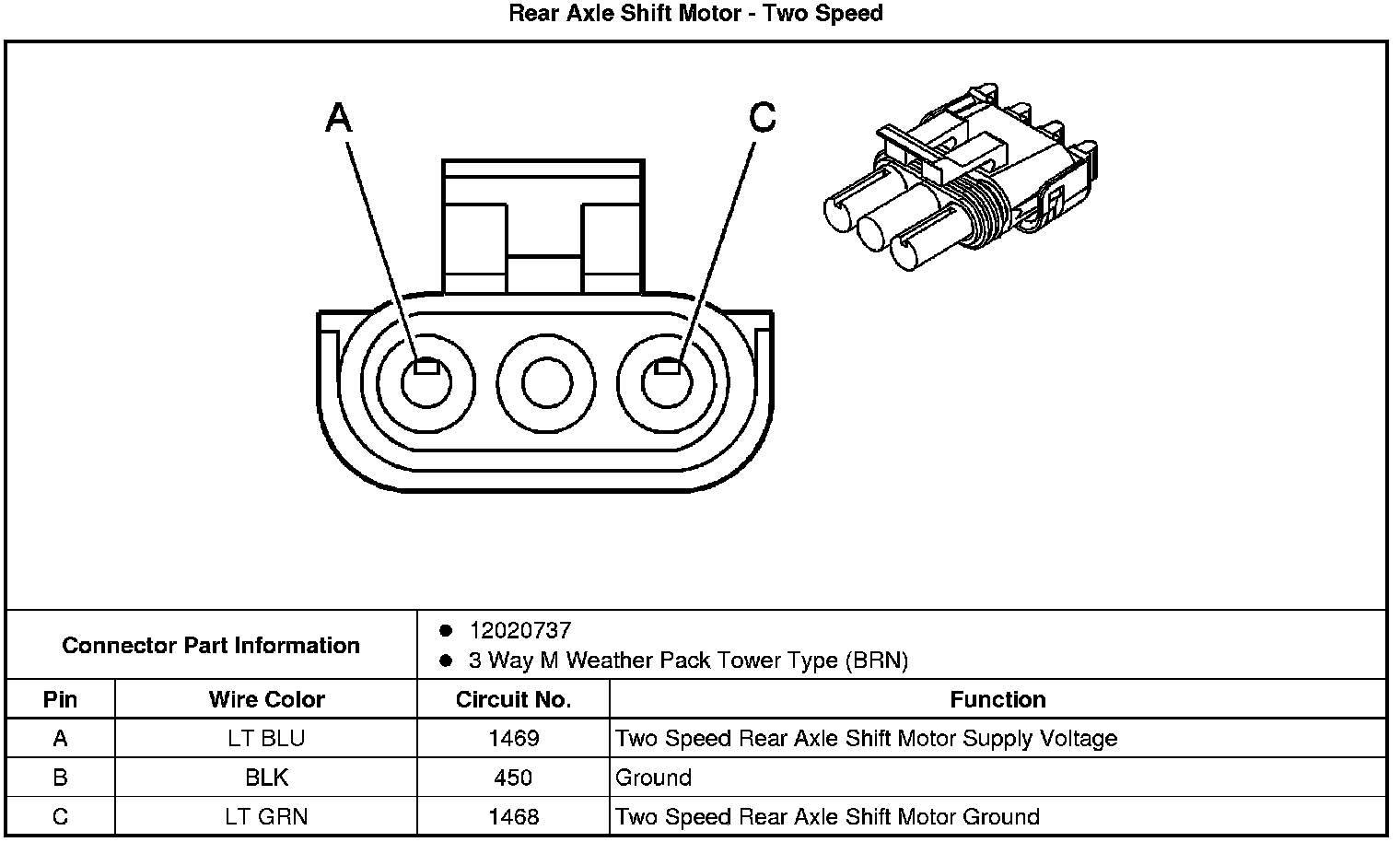

Rear Axle Connector End Views
