Flywheel: Service and Repair

Engine Flywheel Replacement (Manual Transmission)

Removal Procedure




1. Remove the clutch. Refer to Clutch Assembly Replacement Clutch Assembly Replacement in Clutch.
2. Remove the engine flywheel bolts.
3. Remove the engine flywheel.
4. Clean and inspect the engine flywheel. Refer to Engine Flywheel Cleaning and Inspection (Automatic Transmission) Engine Flywheel Cleaning and Inspection (Manual Transmission) in Engine Mechanical - 8.1 L Unit Repair.

Installation Procedure

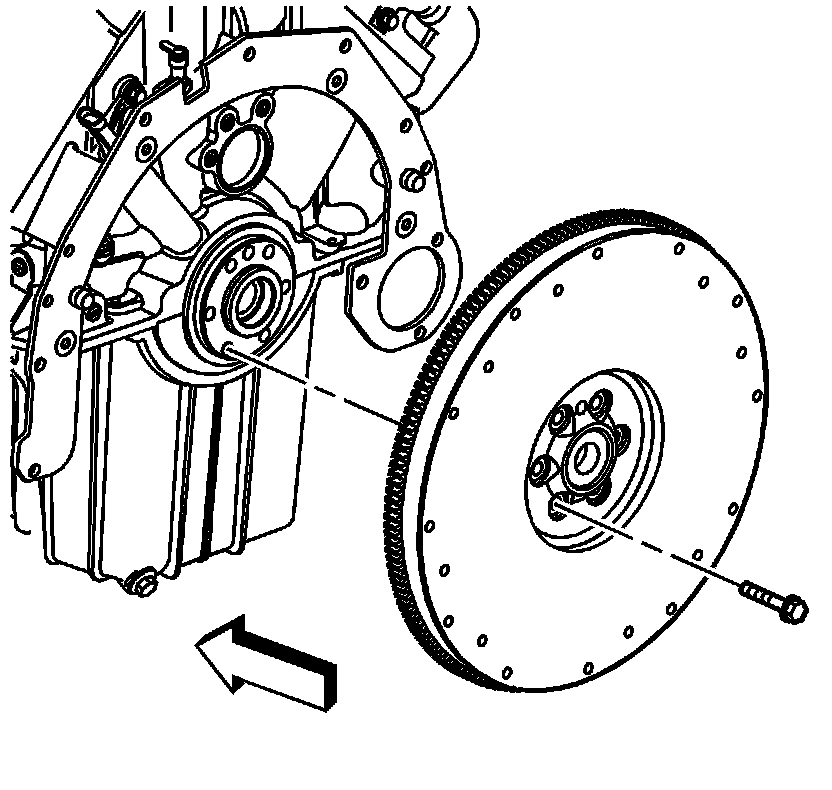

1. Install the engine flywheel.
Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the engine flywheel bolts.

1. Tighten the engine flywheel bolts a first pass to 80 Nm (59 lb ft).
2. Tighten the engine flywheel bolts a final pass to 100 Nm (74 lb ft).

3. Install the clutch. Refer to Clutch Assembly Replacement Clutch Assembly Replacement in Clutch.
